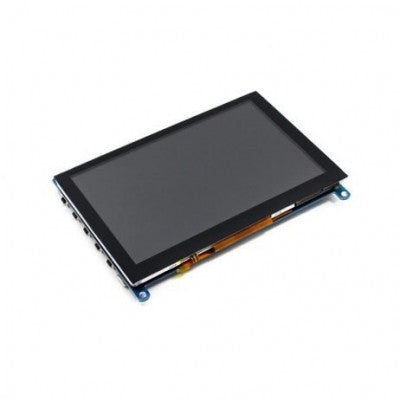

Waveshare 5-inch Capacitive Touch Screen LCD
5-inch LCD with 800x480 resolution, capacitive touch panel, and wide compatibility
- Brand: Waveshare
- Pixel Resolution: 800 x 480
- Display Size (inch): 5
- HDMI Port: Yes
- View Angle: 170
- Touch type: Capacitive
- Touch Port: USB
- Touch-Points: 5

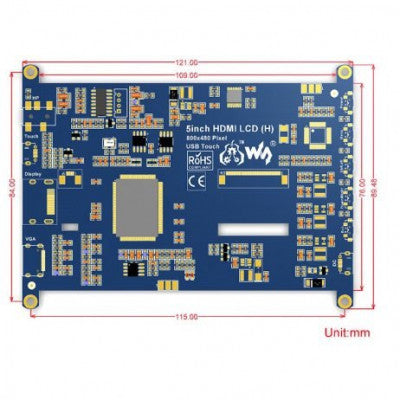

- Length (mm): 121
- Width (mm): 89.5
- Weight (gm): 170
Top Features:
- 800x480 hardware resolution, configurable up to 1920x1080
- Capacitive touch control
- Supports Raspberry Pi, Jetson Nano, BB Black, Banana Pi, and desktop computers
- Driver-free operation with various systems
This Waveshare 5-inch Capacitive Touch Screen LCD offers a resolution of 800x480 and a capacitive touch panel. It is compatible with Raspberry Pi and can function as a computer monitor. The touch screen supports multi-touch up to 5 points on Windows 10/8.1/8 OS and single touch on some Windows 7 systems. It is compatible with Raspbian, Ubuntu, Kali, Retropie, WIN10 IoT systems, and more. Manual resolution setting is required for Raspberry Pi use to avoid display issues.
Package Includes:
- 1 x 5inch HDMI LCD (H)
- 1 x HDMI cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x USB type A plug to micro B plug cable

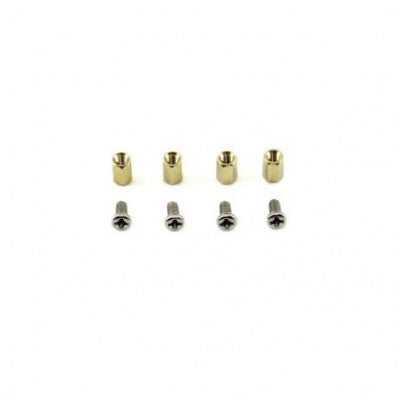

- 1 x RPi screws pack (4pcs)

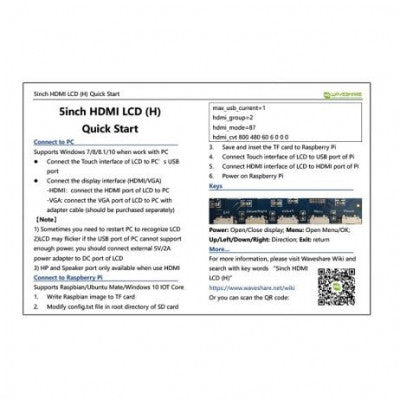

- 1 x Quick start sheet
*Images are for illustration only; actual product may vary.
