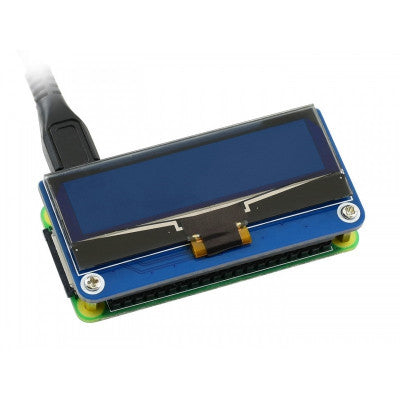

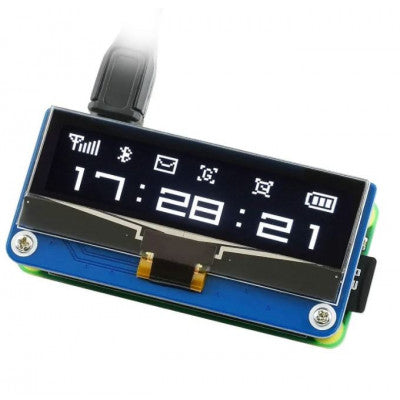

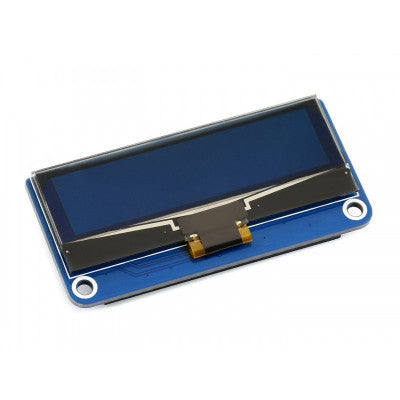

OLED Display HAT for Raspberry Pi
2.23 inch OLED display HAT with SSD1305 driver for Raspberry Pi
- Driver Chip: SSD1305
- Interface: SPI / I2C
- Resolution: 128x32
- Display Size: 2.23 inch diagonal
- Colors: White
- Visible Angle: >160
- Operating Voltage: 3.3V / 5V
- Logic Level: 3.3V
- Length (mm): 65
- Width (mm): 30.5
- Height (mm): 3.8
- Weight (gm): 19
Top Features:

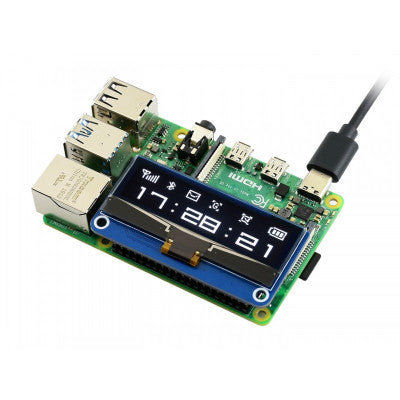

- Standard Raspberry Pi 40PIN GPIO extension header
- Supports Raspberry Pi series boards, Jetson Nano
- Optional interfaces: SPI (default), or I2C
- Brings control pins for host boards like Arduino/STM32

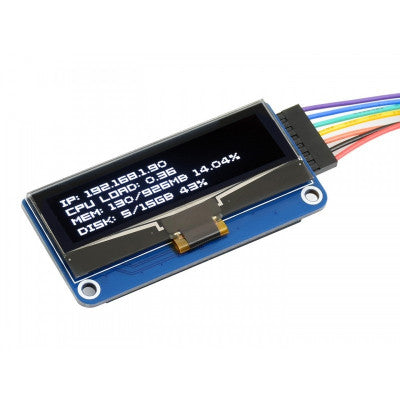

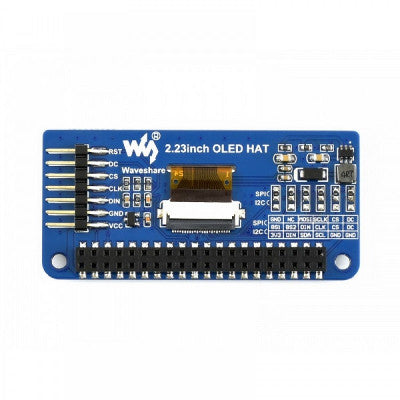

This OLED display HAT is designed for Raspberry Pi, featuring a 2.23 inch diagonal screen with 128x32 resolution. It comes with an embedded SSD1305 driver and can communicate via SPI or I2C interface. You can easily connect it to your Raspberry Pi using the 40 PIN header or to other hardware platforms through the I2C and SPI interfaces. The default interface is SPI, but you can switch to I2C by soldering the resistors on the back of the OLED.
The package includes 1 x 2.23 inch OLED HAT and 1 x RPi screws pack (2 pieces).
