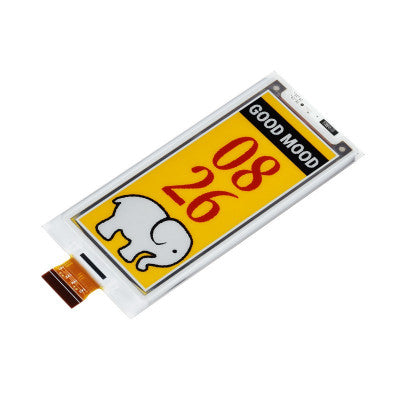

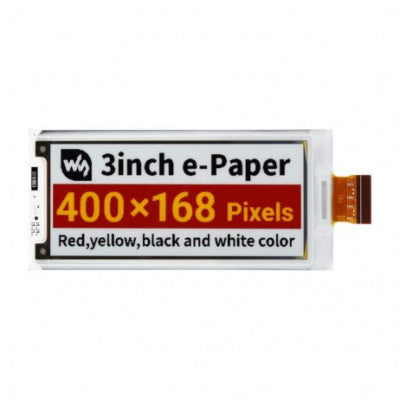

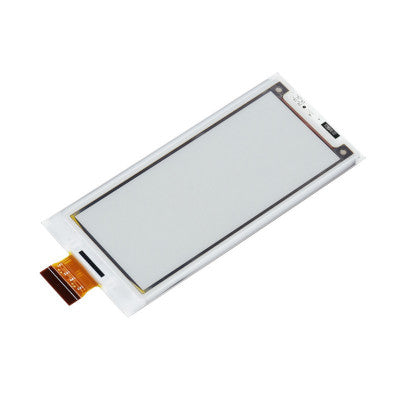

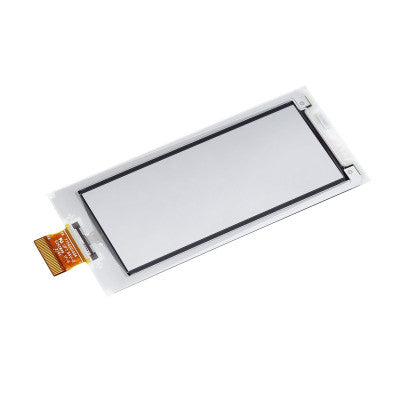

3inch E-Paper (G) Raw Display, 400 168, SPI Interface
E-paper display utilizing microcapsule electrophoretic technology for clear image/text display.
- Operating Voltage: 3.3V
- Display Color: Red/Yellow/Black/White
- Interface: 3-wire SPI, 4-wire SPI
- Grey Scale: 2
- Outline Dimensions: 86.4 x 39.2 x 0.85mm
- Full Refresh Time: 12s
- Display Size: 70.4 x 29.568mm
- Refresh Power: <60mW (typ.)
- Dot Pitch: 0.176 x 0.176mm
- Standby Current: <0.01uA (almost none)
- Resolution: 400x168 pixels
- Viewing Angle: >170
Features:
- No backlight, retains content even when powered off
- Ultra-low power consumption, only needed for refreshing
- Comes with development resources and manual
E-paper display clearly shows images/texts under ambient light without a backlight. Ideal for e-readers due to its paper-like effect. Suitable for price tags, asset/equipment tags, shelf labels, and conference name tags.
Useful link: Documentation and Interfacing of 3inch e-Paper Module with controller
* Images are for illustration only; actual product may vary.
