2D Codes Scanner Module
Fast and accurate barcode/QR code reader with high-density scanning
- Decoding code types: Aztec, BPO, Codabar, Codablock, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN 128, DataMatrix, EAN.UCC Composite, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, QR Code, RSS, Standard 2 of 5, Telepen, TLC 39
- Specs:
- Supports: 4mil high-density barcode scanning
- Interfaces: USB, UART
- Compatibility: Computer, embedded devices
Features:
- Plug and Play Device
- Small And Compact Size
- Supports Multiple code formats
- Powerful and Fast Scanning

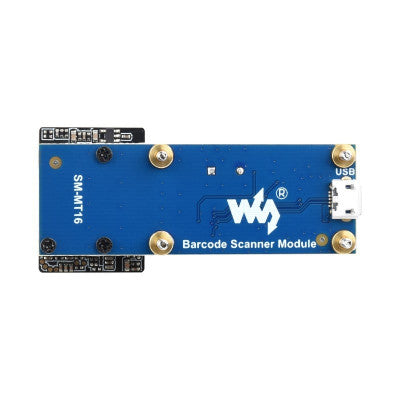

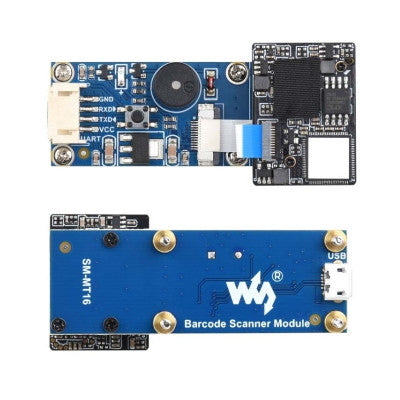

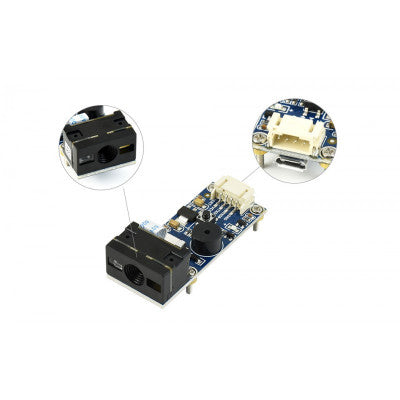

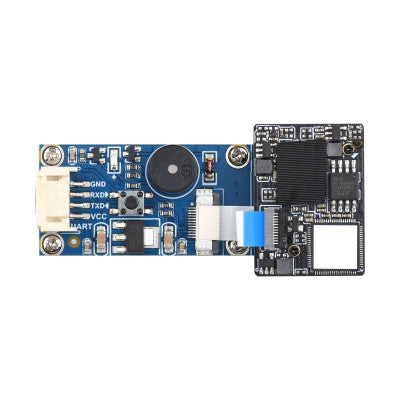

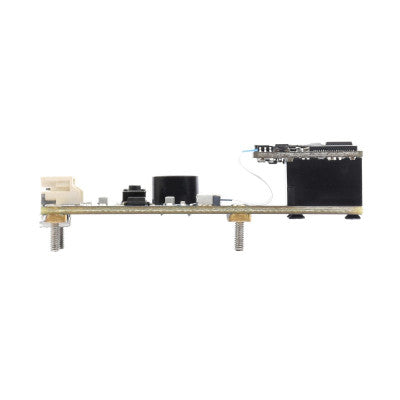

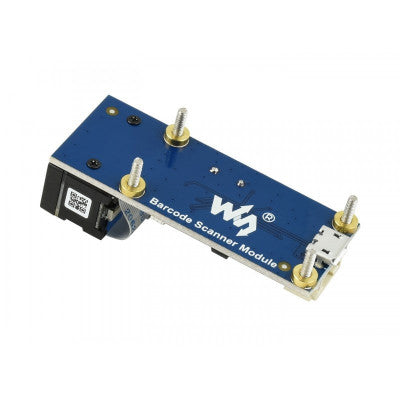

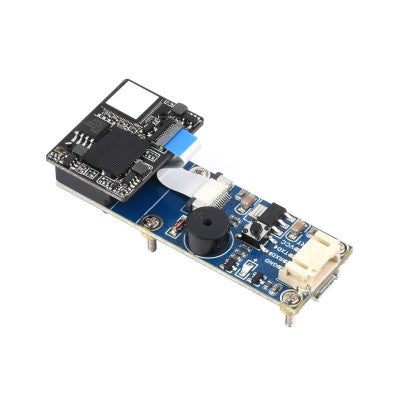

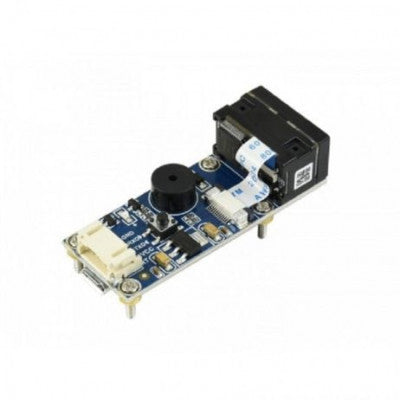

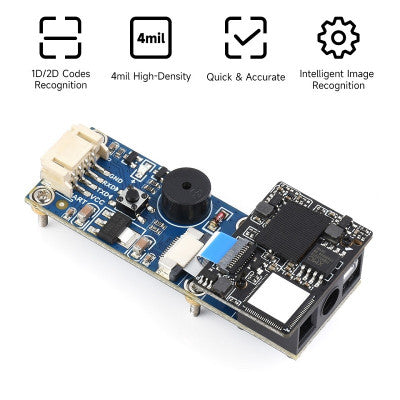

The Barcode Scanner Module (B) is a Barcode/QR codes scanner module that utilizes an intelligent image recognition algorithm for fast and accurate decoding of 1D or 2D codes on paper or screen. It supports a variety of barcode formats and 4mil high-density barcode scanning. With onboard USB and UART interfaces, it can be easily integrated into various embedded devices or directly plugged into a computer.
Quick Test: The default factory setting of the Barcode Scanner Module (B) is USB keyboard mode and key scanning. Connect the USB interface of the device to the computer via the USB cable. Open a document editor (word or notebook) and click on the document to keep typing. Press the button to turn on scanning and scan any barcode. Note that the relevant setting code in the setting manual will not output results and cannot be used for testing. Normally, the scan result will be printed automatically, and the buzzer will sound to indicate that the decoding is successful.
Package Includes:
- 1 x Waveshare 2D Codes Scanner Module
- 1 x Micro-USB Male to USB-A Male Cable- 80 cm
- 1 x 4-pin UART cable
* Images are for illustration only; actual product may vary.
