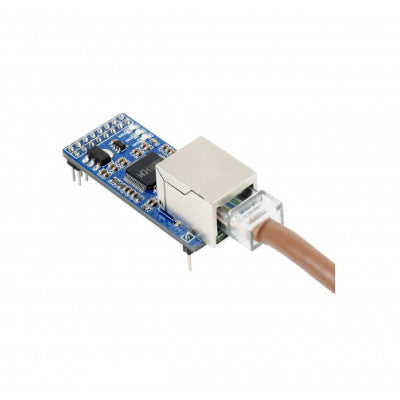

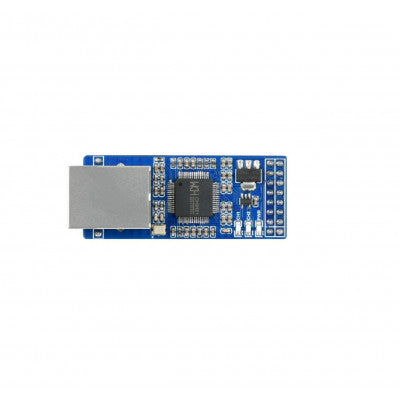

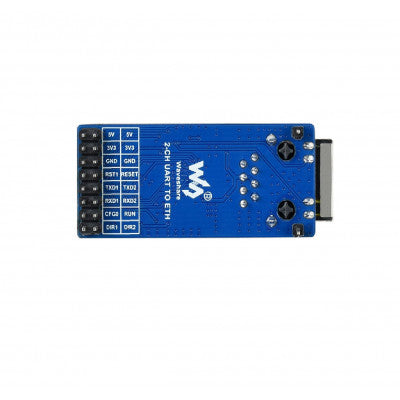

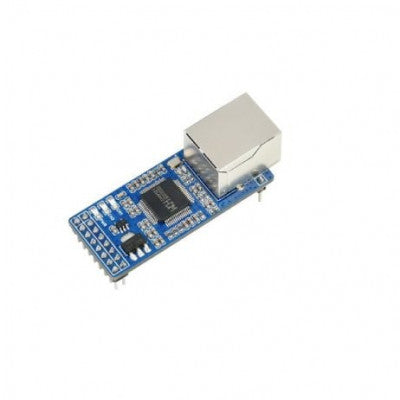

Waveshare 2-CH UART To Ethernet Converter
Efficient bidirectional transparent data transmission between TTL and Ethernet
- Processor: M0 series 32-bit ARM processor
- UART Baudrate: 300-921kbps
- Operating Current (A): 140
- Operating Temperature Range (C): -40 to 85
Top Features:
- Fast speed M0 series ARM processor
- Auto-MDI/MDIX Ethernet interface
- Customizable heartbeat packets
- Configurable via web page, AT commands, and more
TCP232-T2 is a compact serial to Ethernet module facilitating bidirectional transparent data transmission between TTL and RJ45 ports. It supports RT232/RS485 via a level shift circuit. The module, powered by a Cortex-M0 core, boasts low power consumption, high efficiency, and strong compatibility. Configuration parameters can be easily set and permanently saved through the built-in webpage or software.
The module features a 10/100M Auto-MDI/MDIX Ethernet interface, ensuring seamless connectivity with cross-over or straight-through cables. Auto-reconnecting functionality guarantees a reliable TCP connection. Additionally, it supports customized heartbeat packets, registration packets, and packet headers. The module also offers a range of supported protocols including IP, TCP, UDP, and more.
Configuration options are versatile, allowing setup via a web page, AT commands, serial protocol, or network protocol. The module comes with default MAC address, which can be personalized. Firmware upgrades can be conveniently done over the network, and factory settings can be restored via software and/or hardware.
The package includes 1 x Waveshare 2-CH UART To Ethernet Converter.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
