2.9-inch e-Ink Paper Display Module with SPI Interface
An e-Ink display module with ultra-low power consumption and wide viewing angle.
- Operating Voltage (VDC): 3.3 ~ 5
- Display Size (inch): 2.9

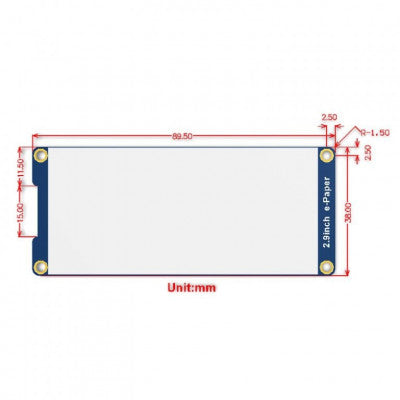

- Outline dimension (mm): 89.5 x 38
- Dot Pitch: 0.138 x 0.138
- Grey level: 2
- Display Color: Black and White
- Display Resolution: 296128
- Viewing Angle: >170
- Interface: 3-wire SPI, 4-wire SPI
- Partial Refresh Time: 0.3s
- Full Refresh Time (s): 2
- Refresh Power: 26.4mW(typ.)
- Standby Power (mW): <0.017
- Dimensions in mm (LxWxH): 90 x 39 x 10
- Weight (gm): 28
Features:
- No backlight keeps displaying last content for a long time
- Ultra low power consumption, power only required for refreshing
- SPI interface for easy connection with controller boards
- Onboard voltage translator, compatible with 3.3V/5V MCUs
Due to the advantages like ultra-low power consumption and wide viewing angle, the 2.9-inch e-Ink Paper Display Module with SPI Interface is an ideal choice for applications such as shelf labels and industrial instruments. It has no backlight, allowing it to display content even when the power is down. The SPI interface enables easy connection with controller boards like Raspberry Pi, Arduino, and Nucleo.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
