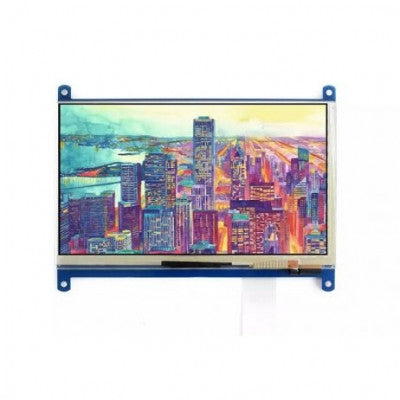

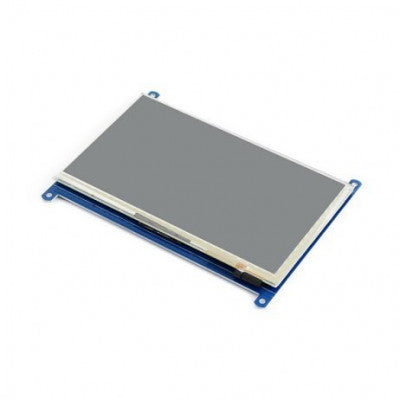

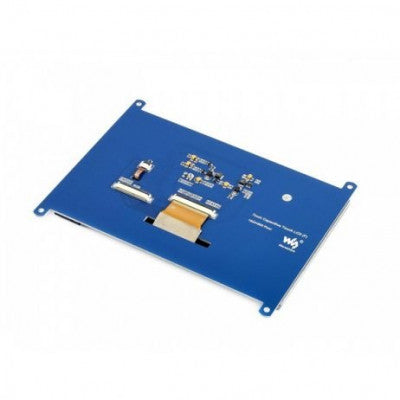

Waveshare 18 cm (7 Inch) Capacitive Touch LCD Display (F)
Color active matrix LCD module with high resolution and capacitive touch panel
- Brand: Waveshare
- Backlight: LED
- Input Voltage (V): 3.0 ~ 3.6V
- Pixel Resolution: 1024 x 600

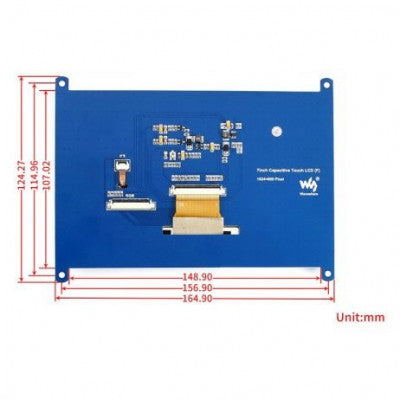

- Display Size: 18 cm (7 inch)
- Interface Type: RGB
- Panel Type: TFT
- Touch Controller: GT911
- Touch Panel: Capacitive (5 multi-touch)
Features:
- High Resolution: 1024(RGB) x 600 Dots
- High aperture ratio
- 24 chip LED backlight
- Dot-Inversion
The Waveshare 18 cm (7 Inch) Capacitive Touch LCD Display (F) is a color active matrix LCD module with a stand-alone touch controller. It incorporates amorphous silicon TFT (Thin Film Transistor) technology and features a color TFT-LCD panel, driver ICs, FPC, and a backlight unit. The display area contains 1024 (RGB) x 600 pixels.
Package Includes:
- 1 x Waveshare 18 cm (7 Inch) Capacitive Touch LCD Display (F) 1024x600
- 1 x 40-pin FFC (opposite sides contact)
Images are for illustration only; actual product may vary.
