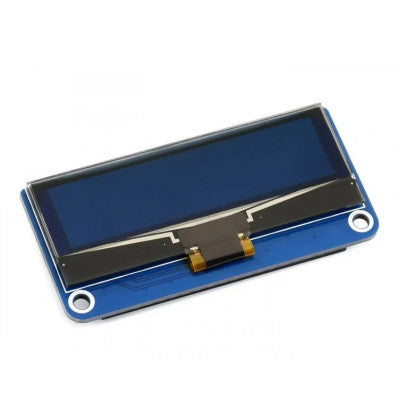

OLED Display HAT for Raspberry Pi
2.23-inch OLED display with embedded SSD1305 driver for Raspberry Pi
- Diagonal: 2.23 inches
- Resolution: 12832 pixels
- Driver: SSD1305
- Interface: SPI or I2C
- Compatibility: Raspberry Pi series boards, Jetson Nano
Features:
- Standard Raspberry Pi 40PIN GPIO extension header
- Supports Raspberry Pi series boards, Jetson Nano
- Optional interfaces: SPI (default) or I2C

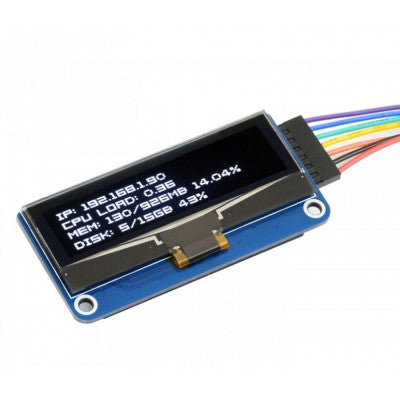

- Control pins for host boards like Arduino/STM32

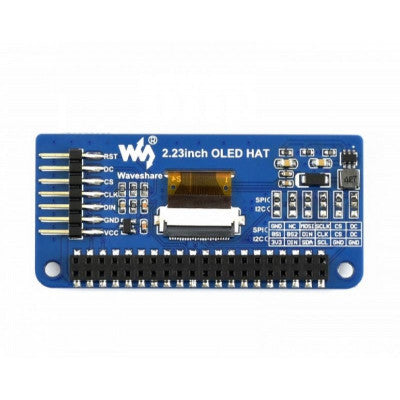

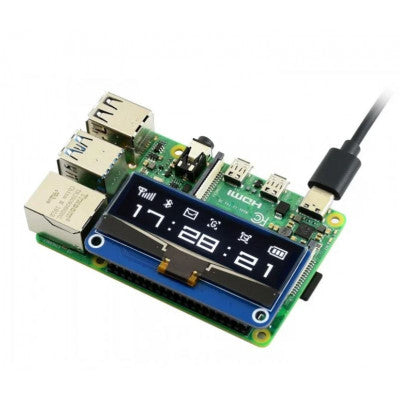

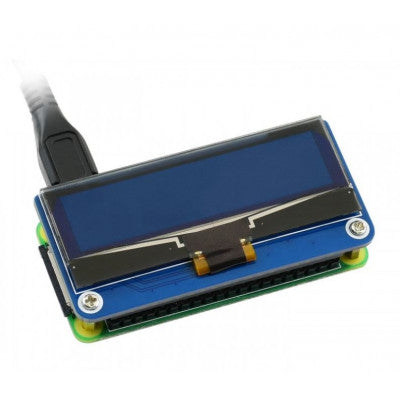

You can directly add this 2.23-inch OLED display HAT on Raspberry Pi using the 40 PIN header. It can also be connected to other hardware platforms via I2C and SPI interfaces. The default interface is SPI, but you can switch to I2C by soldering resistors on the back of the OLED.
The package includes 1 x 2.23-inch OLED HAT and 1 x RPi screws pack (2pcs).
* Images are for illustration only; actual product may vary.
