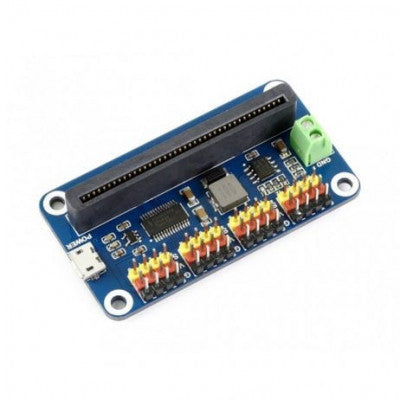

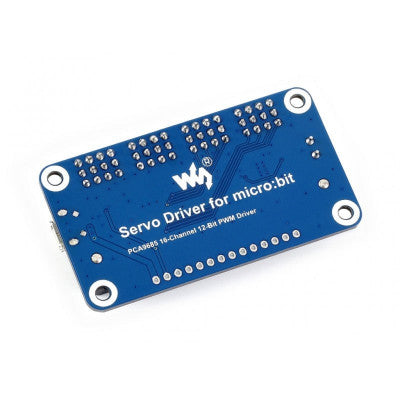

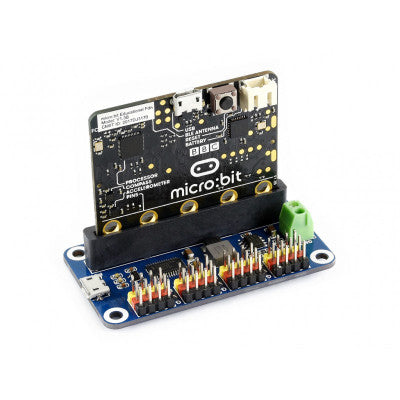

Waveshare 12-bit I2C 16-Channel Servo Driver for micro: bit
A handy solution for overcoming the PWM output limit of micro: bit for servo control.
- micro: bit edge connector: directly pluggable
- I2C controlled: using only 2 pins
- Up to 16-Channel servo/PWM outputs: 12-bit resolution for each channel (4096 scales)
- Integrates 5V regulator: up to 3A output current, can be powered from the battery through VIN terminal
- Standard servo interface: supports commonly used servos such as SG90, MG90S, MG996R, etc.
- Reserved I2C control pins: allows working with other control boards
- Comes with development resources and manual: micro: bit graphical examples like Bluetooth/2.4G wireless remote control
Did you encounter the PWM output limit of micro: bit when trying to make a robotic arm or any robot that requires lots of servos? This handy servo driver breakout would be your ideal choice. Micro: bit is not included in this package; you have to buy it separately.
Package Includes: 1 x Waveshare 12-bit I2C 16-Channel Servo Driver for micro: bit
* Images are for illustration only; actual product may vary.
