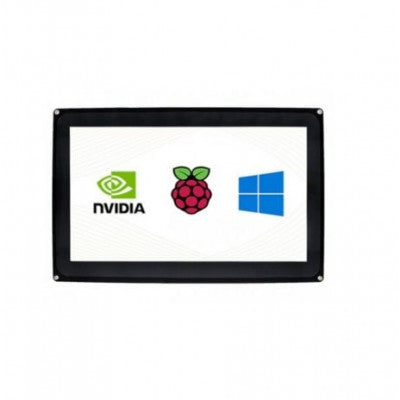

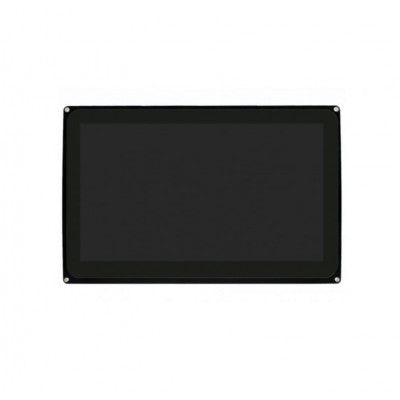

10.1inch HDMI Capacitive Touch Display
A versatile display supporting Raspberry Pi and computer monitor use.
- Product: Capacitive Display
- Brand: Waveshare
- Resolution: 1024x600
- Display Size: 10.1 inch
- HDMI: 1024x600
- Display Port: HDMI / VGA / AV
- Touch Type: Capacitive
- Device & System Support: Raspberry Pi, Jetson Nano, PC, Game Console
Features:
- Hardware resolution of 1024x600
- Capacitive touch control
- Supports Raspberry Pi OS / Ubuntu / Kali and Retropie systems
- Compatible with Windows 11/10/8.1/8/7 when used as a computer monitor
- Works with Microsoft XBOX360 and Nintendo switch
- Multiple video input interfaces: HDMI, VGA, and AV (CVBS)
- Multi-language OSD menu for power control and adjustments
A capacitive touch screen is a control display that uses the conductive touch of a human finger or a specialized device for input.
Useful links:
To do the Hardware setup, please follow this tutorial.
To do the Software setup, please follow this tutorial.
Packages Includes:

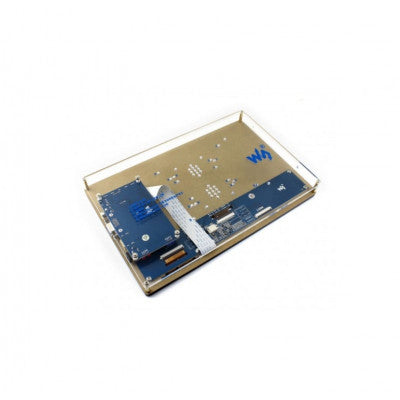

- 1 x 10.1inch Capacitive Touch LCD (F)
- 1 x HDMI LCD control board
- 1 x HDMI cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x USB-A to Micro-B cable
- 1 x 40PIN FFC

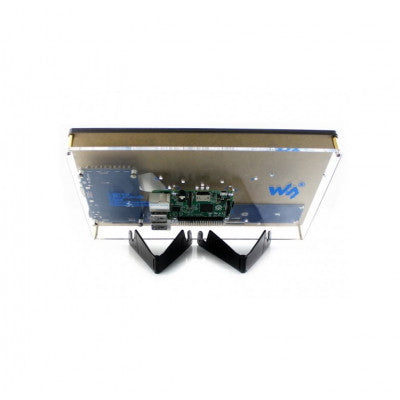

- 1 x Back stand
- 1 x Case and screws
* Images are for illustration only; actual product may vary.
