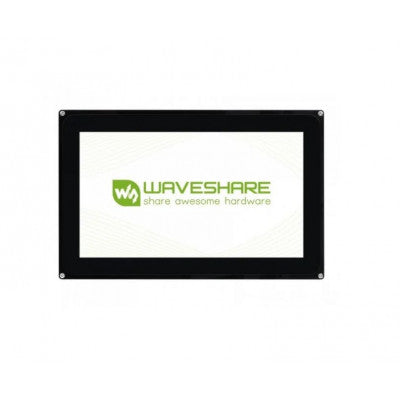

10.1 Inch Capacitive Touch Screen LCD
A high-resolution touch screen LCD with capacitive touch control
- LCD Type: IPS
- Interface: RGB
- Touch Controller: GT7385
- Touch Panel Type: Capacitive (10-point touch)
- Backlight: LED
- Display Size (mm): 223.00 x 125.28
- Dot Pitch (mm): 0.2175 x 0.2088
- Aspect Ratio: 16:9
- Resolution: 1024 x 600 (Pixel)
- Power Consumption: TBD
- Backlight Current: TBD
- Operating Temperature: 0 ~ 70
Features:
- 1024x600 high resolution
- Capacitive touch control
- Supports Raspberry Pi, Jetson Nano, Windows, and Game consoles
- Can be used as a computer monitor
Capacitive touch screen technology utilizes the human body's current induction to function. The capacitive touch screen is a four-layer composite glass screen with ITO coatings on the inner surface and interlayer. This conductive material responds to electrical conductors like bare fingers, completing an electric circuit upon contact. Most mobile phones feature capacitive touchscreens that sense user touch actions. The TFT screen is the actual display.
This 10.1 Inch Capacitive Touch Screen LCD from Waveshare has a resolution of 1024x600 and a capacitive touch panel. It supports various systems like Raspberry Pi, Jetson Nano, Windows, and Game consoles, and can function as a computer monitor. Compatible systems include Windows 10/8.1/8/7, Raspbian/Ubuntu/Kali/Retropie, and WIN10 IoT for single-point touch.
Applications:
- Industrial Control
- Charging Pile
- Smart Home
- Medical
- Internet of Things
- Robotics
- Vehicle-mounted Instruments
- Vending Instruments
- Intelligent CNC
- Cosmetic Instruments
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
