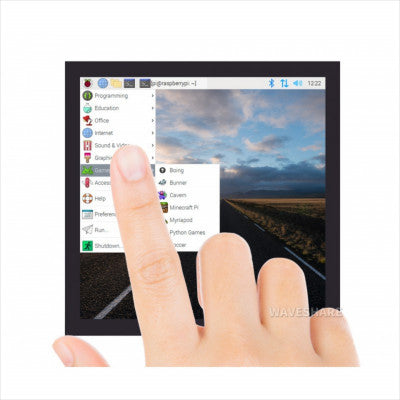

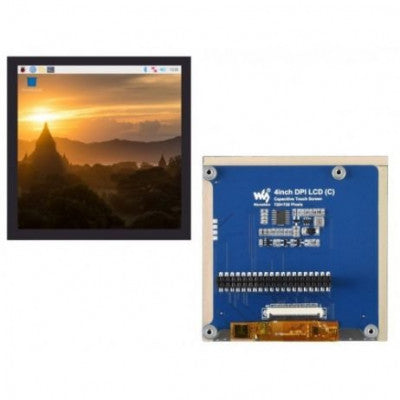

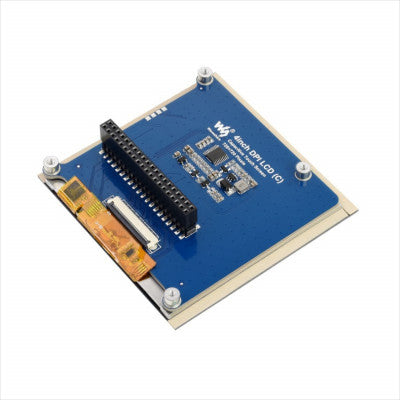

4inch Square Capacitive Touch Screen LCD (C) for Raspberry Pi
Capacitive touch screen LCD designed for Raspberry Pi with 720x720 resolution and DPI interface.
- Size: 4inch
- Resolution: 720x720
- Display Port: DPI666 (262K Colors)
- Display Panel: IPS
- Viewing Angle: 170
- Touch Type: Capacitive
- Touch Points: 5-Points
- Touch Port: I2C
- Touch Panel Tech: Fully Laminated
- Touch Panel: Toughened Glass
Top Features:
- Capacitive touch screen
- 720x720 resolution
- 5-point touch
- IPS display panel
The 4inch Square Capacitive Touch Screen LCD (C) is specifically designed for Raspberry Pi, utilizing the Raspberry Pi 40pin GPIO interface. It can drive capacitive touch through the I2C interface of the Raspberry Pi, supporting 5-points touch with a toughened glass panel that has a hardness of up to 6H. The LCD uses the DPI666 interface of the Raspberry Pi to drive the display, achieving a refresh rate of up to 60 Hz.
Package Includes:
- 1 x 4inch DPI LCD (C)
- 1 x Screws pack
* Images are for illustration only; actual product may vary.
