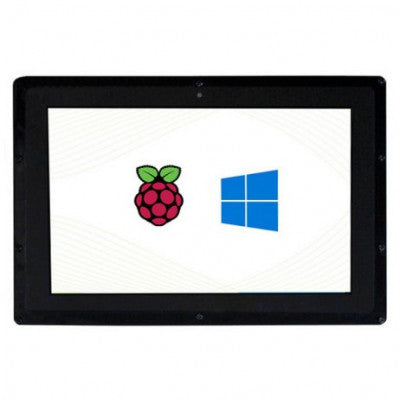

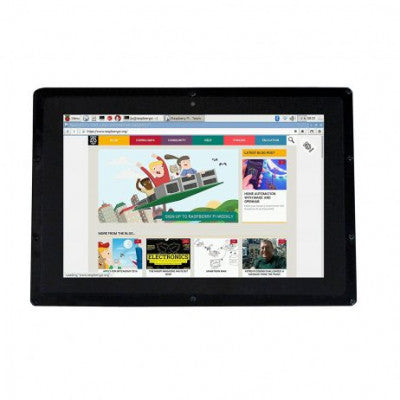

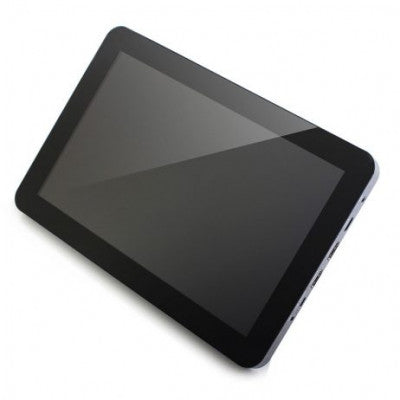

Waveshare 10.1 inch HDMI LCD Display
High-resolution IPS display with capacitive touch panel
- Pixel Resolution: 1280 x 800
- Display Size (inch): 10.1
- HDMI Port: Yes
- Panel Type: IPS
- View Angle: 170
- Brand: Waveshare
- Touch type: Capacitive
- Touch Port: USB
- Toughened Glass Panel: Yes
- Touch-Points: 10

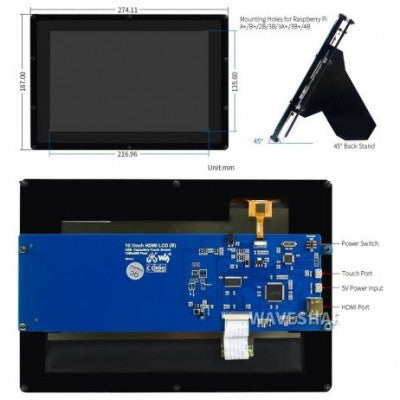

- Length (mm): 274
- Width (mm): 187
- Weight (gm): 930
Top Features:
- IPS screen with 1280 x 800 resolution
- Toughened glass capacitive touch panel, 6H hardness
- Supports Raspberry Pi, BB Black, and general desktop computers
- HDMI interface for display, USB interface for touch control
This Waveshare 10.1 inch HDMI LCD display features an IPS panel with a screen resolution of 1280 x 800. The capacitive touch-type screen is equipped with a toughened glass touch panel that has a 6H hardness rating. It supports various mini-PCs such as Raspberry Pi, BB Black, and general desktop computers. The display comes with an HDMI interface for easy connectivity and a USB interface for touch control. Additionally, it includes a power adapter with an EU plug type.
When used with a Raspberry Pi, this display supports operating systems like Raspbian, Ubuntu, Kali, Retropie, and WIN10 IOT without the need for additional drivers. As a computer monitor, it is compatible with Windows 10, 8.1, 8, and 7, offering ten-point touch functionality without requiring drivers. The display also allows for 5-level backlight adjustment for customized viewing.
Package Includes:
- 1 x 10.1inch HDMI LCD (B) (with case)
- 1 x Back stand
- 1 x Power adapter (EU plug type)
- 1 x HDMI cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x USB-A to Micro-B cable
- 1 x Screws pack
- 1 x Quick start sheet
Images are for illustration only; actual product may vary.
