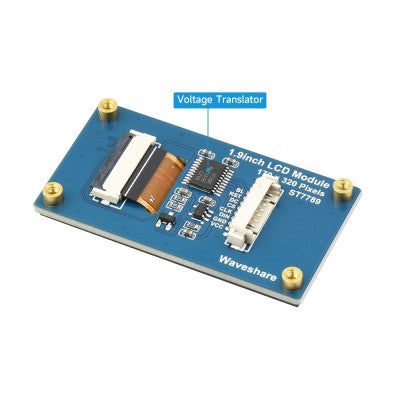

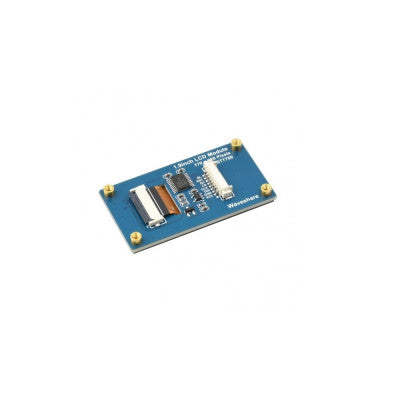

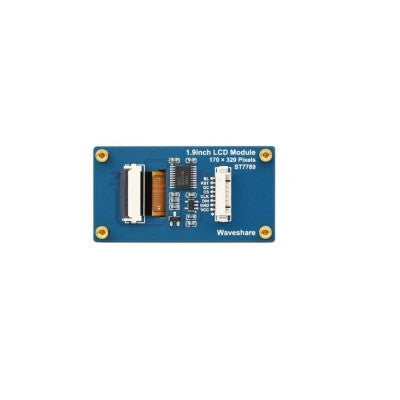

Waveshare 1.9-inch LCD Display Module
1.9-inch LCD display module with 170320 resolution and SPI interface support.
- Resolution: 170320
- Interface: SPI
- Display Type: IPS
- Colors: 262K
- Built-in Driver: ST7789V2
- Controller: 240 x RGB x 320
- Input RGB Format: 12 bits, 16 bits, 18 bits (RGB444, RGB565, RGB666)
- Supports: Portrait and horizontal screen
Top Features:
- 170320 resolution, 262K colors
- SPI interface for minimal IO pins

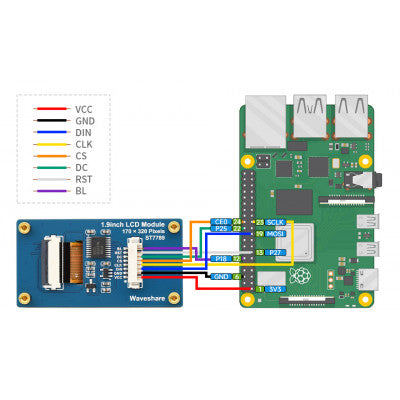

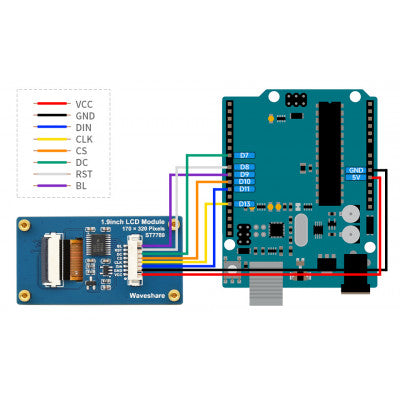

- Compatible with Raspberry Pi/Arduino/STM32
- Online development resources available

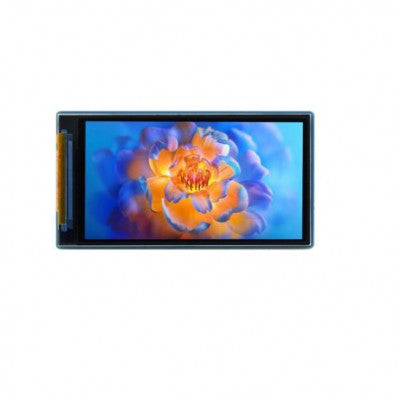

The Waveshare 1.9-inch LCD Display Module features a clear and colorful display effect with support for SPI interface and 262K colors. The built-in driver, ST7789V2, offers a resolution of 170 (H) RGB 320 (V) and supports various input RGB formats. This LCD module can be initialized as both portrait and horizontal screens, providing flexibility in usage.
With a 4-wire SPI, this LCD module ensures faster communication and saves GPIO headers. It is ideal for projects requiring a compact display solution with high-quality visuals. Whether you are working with Raspberry Pi, Arduino, or STM32, this module offers seamless integration and comes with online development resources for added convenience.
- Package Includes: 1 x Waveshare 1.9-inch LCD Display Module
Images are for illustration only; actual product may vary.
