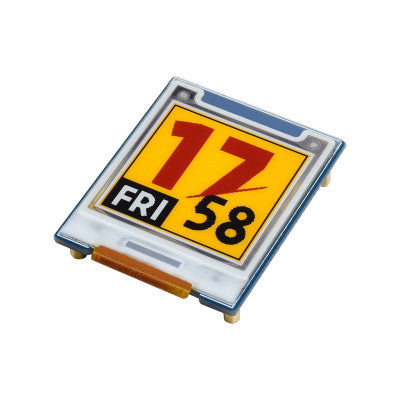

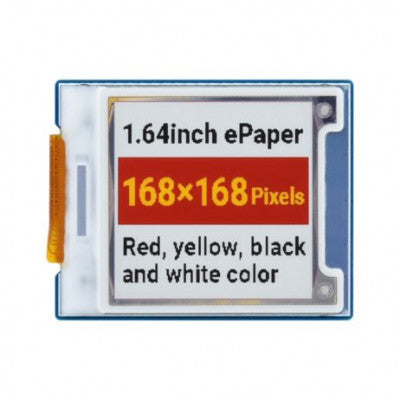

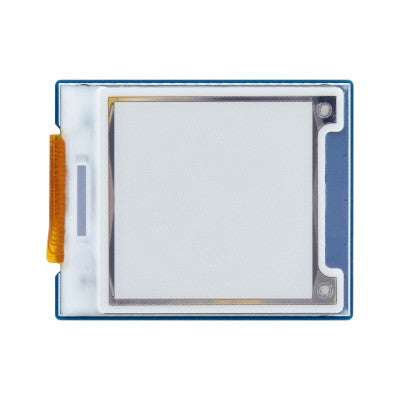

1.64inch Square E-Paper Module (G), 168 168, Red/Yellow/Black/White
E-paper display module with microcapsule electrophoretic technology for clear image/text display.
- Resolution: 168x168
- Color: Red/Yellow/Black/White
- Display Technology: E-paper with microcapsule electrophoretic technology
- Viewing Angle: Up to 180 degrees

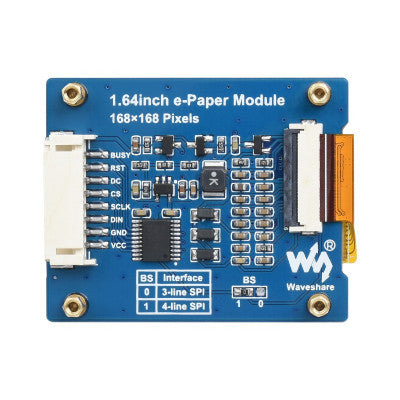

- Interface: SPI
- Compatibility: Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Power Consumption: Ultra-low power consumption
- Package Includes: 1 x 1.64inch e-Paper Module, 1 x PH2.0 20cm 8Pin
Features:
- No backlight, retains content even when powered off
- Ultra-low power consumption
- SPI interface for easy connection

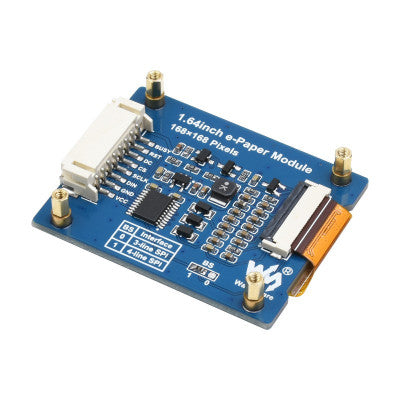

- Onboard voltage translator for 3.3V/5V MCUs
E-paper display utilizes microcapsule electrophoretic technology to display images/texts without the need for a backlight. It offers a paper-like effect and is ideal for e-reader applications. The display remains clear under various lighting conditions and has a wide viewing angle of up to 180 degrees.
For hardware and software setup, please refer to the provided tutorial. The module comes with development resources and a manual including driver board schematics and examples for Raspberry Pi, Arduino, and STM32.
* Images are for illustration only; actual product may vary.
