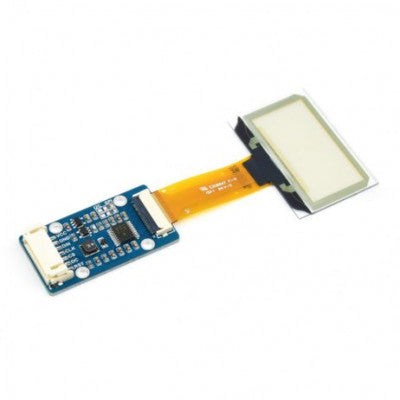

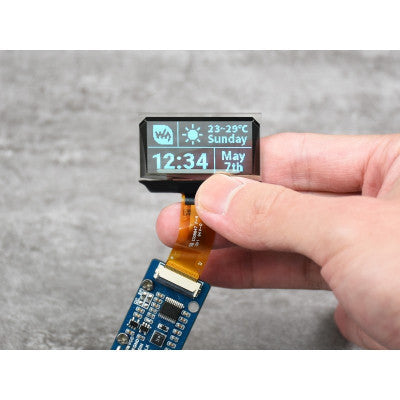

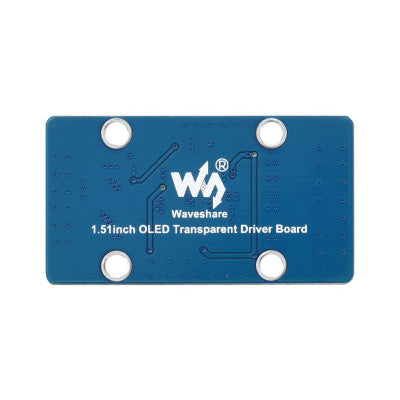

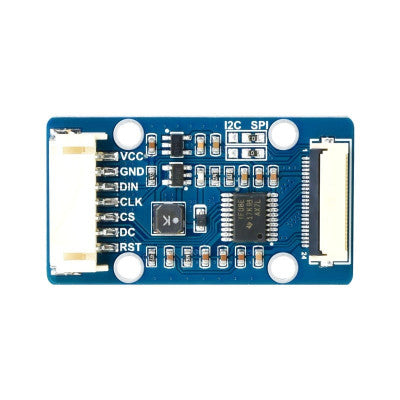

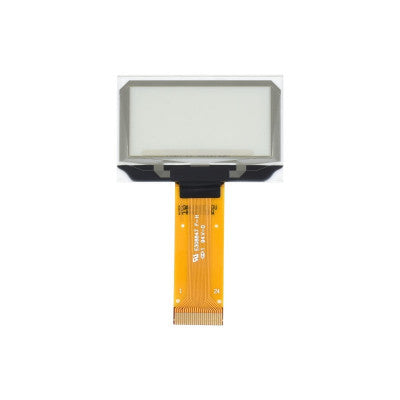

1.51inch Transparent OLED Display
12864 Resolution, SPI/I2C Interfaces, Light Blue Color
- Resolution: 12864
- Interfaces: SPI/I2C
- Color: Light Blue
- Driver Chip: Embedded Independent
- Compatibility: Raspberry Pi, Arduino, STM32
Features:
- OLED transparent module with full viewing angle
- 4-wire SPI and I2C interface for better compatibility and fast data rate
- Comes with development resources for Raspberry Pi, Arduino, STM32
This 1.51inch Transparent OLED module features a 12864 resolution display in a light blue color. It comes with an embedded independent driver chip and examples for Raspberry Pi, Arduino, STM32, and more. The OLED module offers a full viewing angle and supports both SPI and I2C interfaces for improved compatibility and faster data transfer rates. For online development resources, please contact the seller directly.
For hardware setup instructions, please refer to the provided tutorial. For software setup guidance, follow the tutorial link provided.
- Package Includes:
- 1 x Waveshare 1.51inch OLED Blue Color Display
- 1 x PH2.0 7PIN cable
- 1 x Screws Pack
Images are for illustration only; actual product may vary.
