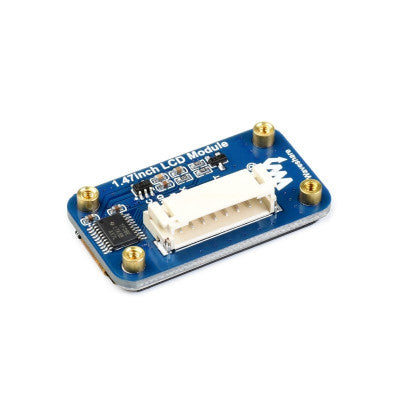

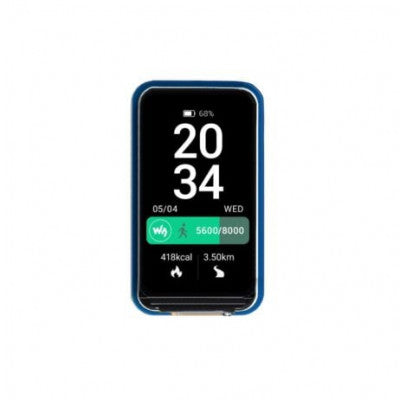

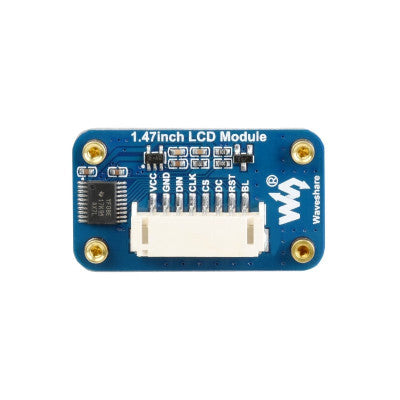

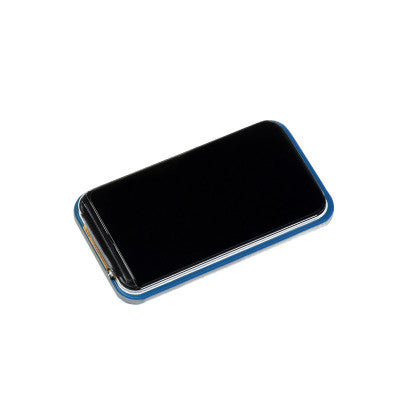

Waveshare 1.47inch LCD Display Module
Rounded Corners, 172320 Resolution, SPI Interface
- Resolution: 172320
- Interface: SPI
- Controller: ST7789V3
- Controller Resolution: 240 x RGB x 320 pixels
- Actual Resolution: 172(H)RGB x 320(V) pixels
- Color Formats: 12-bit, 16-bit, 18-bit (RGB444, RGB565, RGB666)
- Color Format Used: RGB565
- Communication Interface: Four-wire SPI
Features:
- 172320 resolution, 262K RGB colors
- SPI interface, minimizes required IO pins

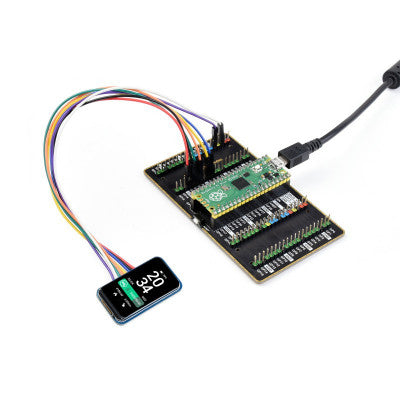

- Supports Raspberry Pi/Arduino/STM32
- Comes with development resources
The built-in controller used in this LCD is ST7789V3, which is an LCD controller with 240 x RGB x 320 pixels. The LCD supports 12-bit, 16-bit, and 18-bit input color formats per pixel, namely RGB444, RGB565, RGB666. This demo uses the RGB565 color format, which is commonly used. The LCD uses a four-wire SPI communication interface, which can greatly save GPIO ports and increase communication speed.
Package includes: 1 X 1.47inch LCD Module, 1 X PH2.0 8PIN cable.
Images are for illustration only; actual product may vary.
