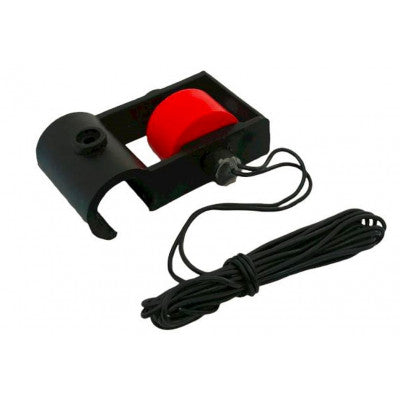

Water Float Switch Type - 2
A sensor to detect liquid level in a tank with magnet and reed switch technology.
- Switching Voltage: 100VMax
- Switching Current: 0.5A
- Max Switching Voltage: 220V
- Max Switching Current: 1.5A
- Max Contact Resistance: 100m?
- Temperature Rating: -10 / +85°C
Top Features:
- Float sensor for liquid level detection
- Magnet and reed switch technology
- Activates circuit based on liquid level
A float sensor, also known as a float switch, is designed to detect the level of liquid, typically water, in a tank. The float sensor consists of a magnet on the float (the moving part) and a reed switch on the stem (fixed part). When the magnet approaches the reed switch, the switch is activated, closing the circuit.
Package Includes: 1 x Water Float Switch Type - 2 (Water Level Sensor)
* Images are for illustration only; actual product may vary.
