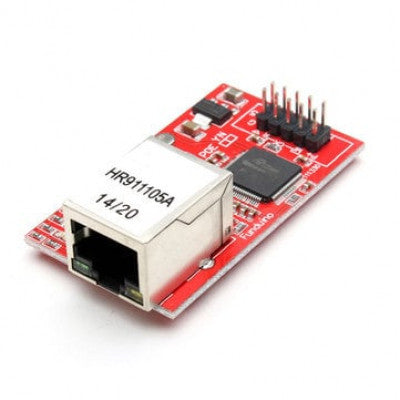

W5100 Ethernet Module
A full-featured, single-chip Ethernet controller for embedded applications.
- Spec name: W5100 Ethernet Module
- Designed for: Embedded applications
- Compliance: IEEE 802.3 17 BASE-T, 802.3u 10 BASE-TX
-
Features:
- Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- 10BaseT/100BaseTX Ethernet PHY embedded
- Auto-Negotiation (Full-duplex and half duplex)
- Supports up to 4 independent sockets
The W5100 Ethernet Module is designed to provide easy Internet connectivity without the need for an operating system. It includes a fully hardwired TCP/IP stack that has been proven in various applications over several years. With integrated Ethernet MAC & PHY, this module simplifies implementation and offers stability and performance.
No need to worry about handling the Ethernet controller; simple socket programming is all that's required. The module also features a 16kbytes internal buffer for data transmission.
Pin Connection:
- V+5: 5v
- GND: GND
- MO: D11 (D51)
- MI: D12 (D50)
- SCK: D13 (D52)
- RST: RESET
Package Includes: 1 x W5100 Ethernet Module
-
Specifications:
- Length (mm): 54
- Width (mm): 31
- Height (mm): 18
- Weight (gm): 14
* Images are for illustration only; actual product may vary.
