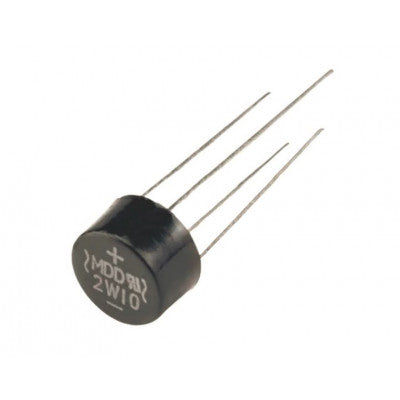

1.5 Amp Full Wave Bridge Rectifier (W10M)
Single phase bridge rectifier with a voltage range of 50 to 1000 Volts
- Spec name: Value
- Voltage Range: 50 to 1000 Volts
- Current: 1.5 Amperes
- Maximum Repetitive Peak Reverse Voltage: 100 V
- Maximum RMS Voltage: 70 V
- Maximum DC Blocking Voltage: 100 V
- Maximum Average Forward Rectified Output Current: 1.5 A
- Peak Forward Surge Current: 50 A
- Maximum Instantaneous Forward Voltage at 1.0A: 1 V
- Typical Junction Capacitance: 15 PF
- Typical Thermal Resistance: 40 °C/W
- Operating Temperature Range: -55 to +125 °C
- Storage Temperature Range: -55 to +150 °C
Features:
- Low cost
- UL recognized under component index
- High forward surge current capability
- Ideal for printed circuit board
This series is designed for high temperature soldering guaranteed at 260 °C for 10 seconds with a lead length of 0.375” (9.5 mm) at 5 lbs. (2.3 kg) tension.
Mechanical Data:
- Case: Molded plastic body
- Terminal: Lead solderable per MIL-STD-202 E method 208 C
- Polarity: Polarity symbols molded on case
- Mounting position: Any
- Weight: 0.042 ounce, 1.2 grams
Related Document: W10M Rectifier Data Sheet
