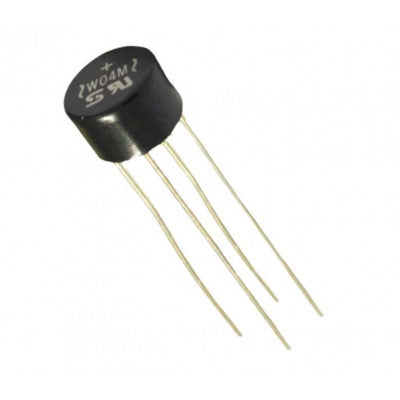

W04 Rectifier
Single Phase Glass Passivated Silicon Bridge Rectifier
- Voltage Range: 50 to 400 Volts
- Current: 1 Amperes
- Symbol Parameter: Values
- VRRM: 50 V
- VRMS: 35 V
- VDC: 50 V
- IO: 1.5 A
- TJ Operating Temperature Range: 55 to +150 °C
- TSTG Storage Temperature Range: 55 to +150 °C
Features:
- High reverse voltage to 400V
- Surge overload ratings to 50 amperes peak
- Good for printed circuit board assembly
Mechanical Data:
- UL Listed: Recognized component directory, file E94233
- Epoxy: Device has UL flammability classification 94V-O
- Mounting position: Any
- Weight: 1.20 grams
Related Document: WO4 Rectifier Data Sheet
Images are for illustration only; actual product may vary.
