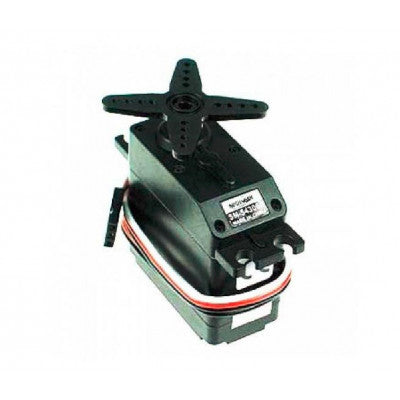

Servo Motor VTS-08A - 6kgf.cm Torque
A high-performance servo motor for precise angular position control.
- Operating Voltage: 4.8-6.0 V
- PWM Input Range: Pulse Cycle 20±2ms, Positive Pulse 1~2ms
- STD Direction: Counter Clockwise / Pulse Traveling 1500 to 1900µsec
- Stall Torque: 5Kgf.cm (69.5 oz/in) at 4.8V, 6Kgf.cm (83.4 oz/in) at 6V
- Operating Speed: 0.33 sec/ 60° at 4.8V, 0.3 sec/ 60° at 6V at no load
- Weight: 43g (1.5 oz)
- Size: 43 x 23 x 38.2 mm (1.69 x 0.91 x 1.5 in)
- Plug Available: FUT, JR
- Special Feature: Heavy Duty Plastic Gears, Economy Servo
Top Features:
- High torque output
- Precision control
- Lightweight design
- Compatible with FUT and JR plugs
A servo motor is a rotary actuator that allows for precise control of angular position. It consists of a motor coupled to a sensor for position feedback. It also requires a servo drive to complete the system. The drive uses the feedback sensor to precisely control the rotary position of the motor. This is called closed-loop operation. By running the system closed-loop, servo motors provide a high performance alternative to stepper and AC induction motors.
Package Includes:
- 1 x VTS-08A Servo Motor - 6kgf.cm Torque
* Images are for illustration only; actual product may vary.
