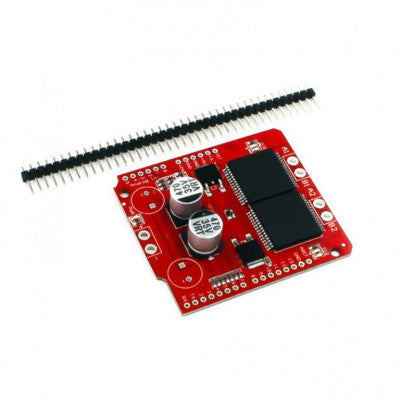

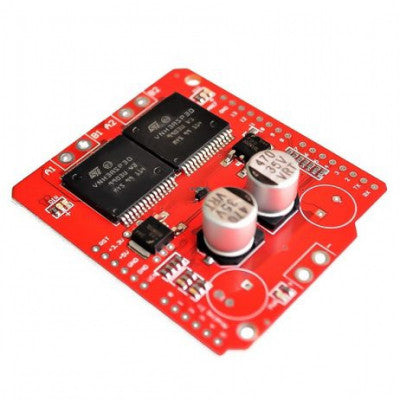

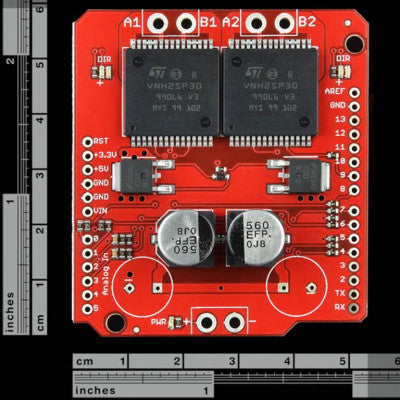

Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A)
Ramped up version of the Ardumoto motor driver shield with enhanced features.
- Driver Model: VNH3ASP30
- Operating Voltage(VDC): 12~16
- Peak Current (A): 14
- Continuous Current (A): 30
- No. of Channels: 2
- Battery Protection Mode: Yes
- Over-Current Protection (A): Yes
- Thermal Protection: Yes
- Maximum PWM frequency: 20 kHz
- LED Indicator: Yes
- Cooling Fan: NO
- Arduino Shield: Yes
- Dimensions in mm (LxWxH): 60 x 54 x 12
- Weight (gm): 19
Top Features:
- Current sensing available to Arduino analog pin
- MOSFET on-resistance: 19 m (per leg)
- Thermal Shutdown
- Undervoltage and Overvoltage shutdown
The Dual Monster Moto Shield VNH3ASP30 DC Motor Driver is a full-bridge motor driver designed for high-current motors. It features a dual monolithic high side driver and two low side switches. The VIN and motor out are compatible with 5mm screw terminals for easy connection of larger gauge wires. Control the direction of each motor with INA and INB, while the PWM pins toggle the motors on or off.
For the VNH3ASP30, the current sense (CS) pins output approximately 0.13 volts per amp of output current. Note that in extreme high-demand applications, thermal performance may need improvement with a heat sink or fan, and direct soldering of wires to the board may be necessary.
The VNH3ASP30 is an updated version of the VNH2SP30, offering enhanced features and capabilities for automotive applications.
*Images are for illustration only; actual product may vary.
