VL53L0X TOF-based Distance Laser Lidar/Rangefinder
A new generation Time-of-Flight laser-ranging module for accurate distance measurement.
- Spec name: VL53L0X TOF-based Distance Laser Lidar/Rangefinder
- Measurements: Up to 2m absolute distances
- Emitter: 940 nm VCSEL
- Technology: Time-of-Flight (ToF) with Flight Sense TM patented technology
- Integration: SPAD array and physical infrared filters
- Power Supply: 2.6V to 5.5V
- Communication: I2C protocol
Top Features:
- 940 nm safe and long-ranging laser VCSEL
- In-built 2.8V linear voltage regulator
- Fast and accurate distance ranging, up to 2m
- Efficiently prevents optical cross-talk
The VL53L0X is a compact Time-of-Flight laser-ranging module that offers precise distance measurement regardless of target reflectance. It sets a new standard in ranging performance, making it ideal for various applications.
The sensor, with its SPAD array and Flight Sense technology, integrates a 940 nm VCSEL emitter that is invisible to the human eye. The internal infrared filters enhance range, ambient light immunity, and optical crosstalk robustness.
Popular for its use in iPhone 7 for 3D imaging, the VL53L0X sensor accurately detects objects within its range, even with highly reflective surfaces. Its fast SPAD array and second-gen Flight Sense technology ensure precise measurements with minimal lag.

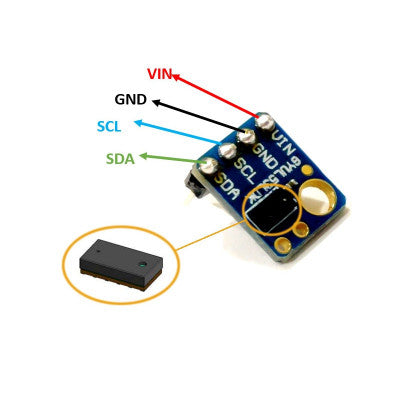

Pin Description:
- VIN: The power supply for the board (2.6V to 5.5V)
- GND: The ground of the module
- SCL: Serial Clock Line pin for I2C communication
- SDA: Serial Data Address pin for I2C communication
The VL53L0X sensor is easy to use, powered by 2.6V to 5.5V with onboard regulation to 2.8V. It communicates via I2C, making it compatible with most microcontrollers.
Applications:
- Obstacle detection in robotics
- Hand detection in various devices
- Gesture recognition
- Camera autofocus enhancement
- Proximity sensor in phones
Package Includes:

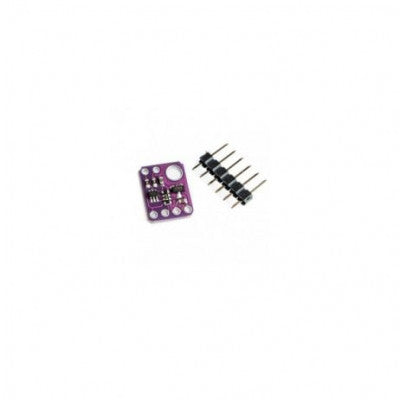

- 1 x VL53L0X TOF Based LIDAR Laser Distance Sensor
*Images are for illustration only; actual product may vary.
