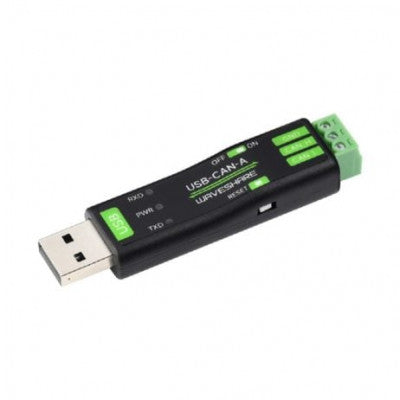

USB To CAN Adapter Model A
STM32 Chip Solution, Multiple Working Modes, Multi-System Compatible
- Supports: Windows XP/7/8/10/11, Linux (Raspberry Pi OS, Ubuntu under Jetson Nano)
- Working Modes: Normal, Loopback, Silent, Silent Loopback
- CAN Frame Support: CAN2.0A (standard), CAN2.0B (extended)
- CAN Baud Rate: Configurable 5Kbps-1Mbps
- Data Sending Modes: Single frame, Multiple frames, Manual, Regular, Cyclic
- Data Receiving Modes: Configurable ID, Auto-answer
- Data Save: TXT, Excel
- USB Virtual COM Baud Rate: Configurable 9600-2000000bps
Features:
- Supports CAN bus detection for status checking
- Sending/receiving CAN data with time scale
- STM32 chip solution for stable communication
- Easy secondary development for modifying commands
Collect data from CAN bus to PC via USB for transceiver control, data analysis, acquisition, and monitoring of CAN bus network. The adapter supports secondary development and comes with master computer software for Windows system.
Package Includes:
- 1 x USB to CAN Adapter Model A
For hardware and software setup, please follow this tutorial.
Images are for illustration only; actual product may vary.
