USB 32Ch Servo Motor Controller Board
Supports PS2 controller WIFI V7.2 and online firmware upgrades
- Operating Voltage: 5V
- CPU voltage: 3.3V
- Servo motor input voltage: 4.2-7.2V
- CPU: 32 Bits
- Baud rate (USB): 115200
- Baud rate (Bluetooth, UART): 9600
- Storage Flash capacity: 16M
- Mode to choose: 4 types
- Simultaneously controlling servo number: 32 channel
- Max action groups: 256 groups
- Communication: UART
Top Features:
- 16M storage capacity
- 256 groups of actions
- Simple indication operation
- 32-bit high-efficiency CPU

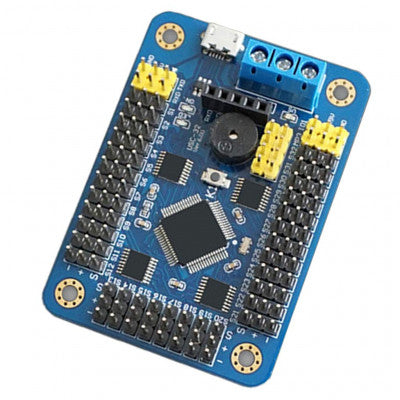

The USB 32Ch Servo Motor Controller Board supports up to 32 servo motors simultaneously. It can be controlled via PC software or UART communication from various MCUs. The controller allows for offline operation by downloading instructions to the servo motor.
The biggest advantage is the ability to use computer software for precise control of up to 32 servo motors at once. The controller features a 32-bit CPU with a USB communication interface for high stability and precision.

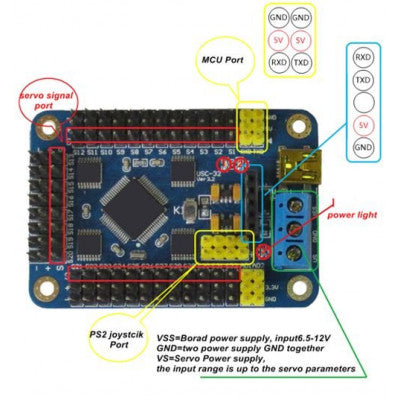

Pin Description:
VCC: Servo power input (4.2V~7.2V)
GND: Overall GND of the servo controller
5V: Servo controller CPU power input (5V 8.5V)
USB: Servo controller CPU power input and data communication port
NOTE: 5V and USB interfaces cannot be accessed simultaneously.

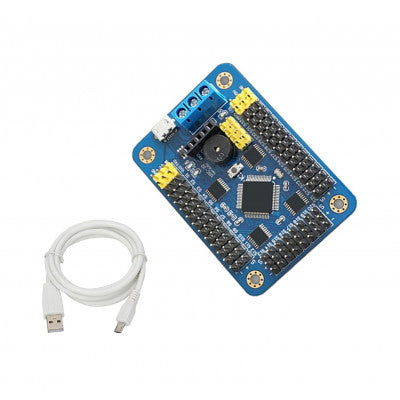

Package Includes:
1 x USB 32Ch Servo Motor Controller Board
1 x USB to Micro USB Cable (1 Meter)
The controller is compatible with various platforms and supports Bluetooth and WIFI wireless control. It also includes signal isolation for added protection and can be used with a PS2 wireless handle.
* Images are for illustration only; actual product may vary.
