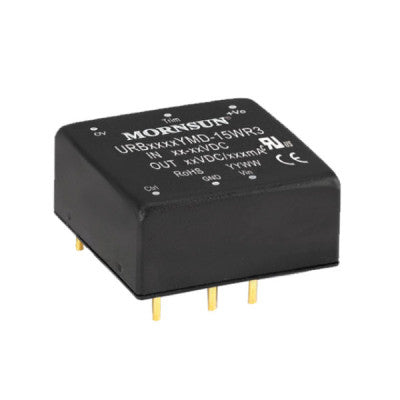

URB2405YMD-15WR3 Mornsun 24V to 5V DC-DC Converter
Efficient and reliable DC-DC converter with wide input voltage range
- Input Voltage Range: 9-36V
- Nominal Voltage: 24V
- Output Voltage: 5V
- Output Current: 3000/0mA
- Wattage: 15W
- Isolation: 1.5kVDC
- Package: DIP
- Package Includes: 1 x URB2405YMD-15WR3 Mornsun 24V to 5V DC-DC Converter 15W Power Supply Module - DIP Package
Top Features:
- Ultra-wide 4:1 input voltage range
- High efficiency up to 91%
- I/O isolation test voltage 1.5kVDC
- Input under-voltage protection
Operating in ambient temperatures ranging from -40 to +105°C, the URB2405YMD-15WR3 Mornsun DC-DC converter provides reliable power conversion with industry-standard pin-out. It is CISPR32/EN55032 CLASS A EMI compliant without the need for external components. The converter also offers protection features such as output short circuit, over-current, overvoltage protection, and input reverse polarity protection available with chassis (A2S) or 35mm DIN-rail mounting (A4S) version. It is approved by IEC62368, UL62368, and EN62368 standards.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
