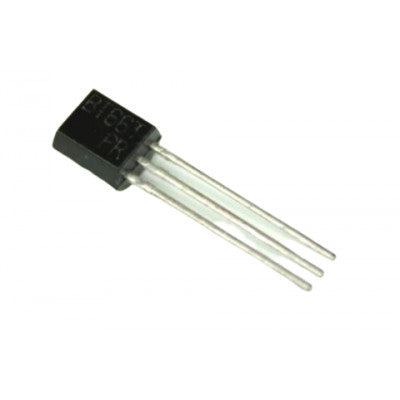

UM66 / BT66 Melody IC TO-92 Package
A CMOS LSI-designed melody generator IC for telephones and toys.
- Supply Voltage: -0.3V ~ +5V
- Operating Voltage: 1.3V to 3.3V
- Level-hold Mode: Play repeatedly
- One-shot or Level Hold Mode
- 64-note ROM Memory
- Sound Range: 2 octaves
- Tempo: 15 kinds (presto-largo)
- Direct Piezo Drive
- Operating Ambient Temperature: -10°C ~ +60°C
- Storage Temperature: -55°C ~ +125°C
- Package: TO-92
Top Features:
- Low power consumption
- Compact melody module construction
- Dynamic speaker drive with external NPN transistor
- Automatic stop or repeat of the melody
The UM66T series is a CMOS LSI-designed melody generator IC suitable for use in telephone and toy applications. It features an on-chip ROM programmed for musical performance, resulting in very low power consumption. With a built-in RC oscillator, a compact melody module can be easily constructed with just a few additional components.
Applications include alarms and toy applications. The package includes 1 x UM66 / BT66 Melody IC TO-92 Package.
*Images are for illustration only; actual product may vary.
