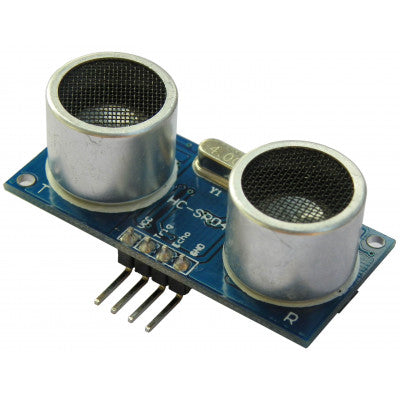

Ultrasonic Distance Sensor
Provides precise and stable non-contact distance measurements from 2cm to 4m.
- Sensor Type: Ultrasonic
- Output: Digital Sensor
- Voltage: 5VDC
- Detection distance: 2cm-400cm (0.02M - 4.0M)
- Static current: < 2mA
- Level output: high-5V
- High precision: up to 0.3cm
Top Features:
- 2cm to 4m detection range
- High precision up to 0.3cm
- 5VDC voltage
- Digital sensor output
This ultrasonic sensor module can be used for measuring distance, object sensor, motion sensors etc. High sensitive module can be used with a microcontroller to integrate with motion circuits to make robotic projects and other distance, position & motion-sensitive products. The module sends eight 40Khz square wave pulses and automatically detects whether it receives the returning signal. If there is a signal returning, a high-level pulse is sent on the echo pin. The length of this pulse is the time it took the signal from first triggering to the return echo.
* Images are for illustration only; actual product may vary.
