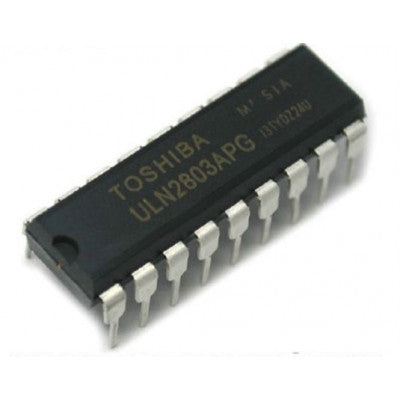

ULN2803APG / AFWG Series
High-voltage, high-current darlington drivers with integral clamp diodes
- Output current (single output): 500 mA (max)
- High sustaining voltage output: 50 V (min)
- Output clamp diodes
- Inputs compatible with various types of logic
- Package Type: DIP-18pin
Specifications:
- Output sustaining voltage (VCE (SUS)): 0.5 to 50 V
- Output current (IOUT): 500 mA / ch
- Input voltage (VIN): 0.5 to 30 V
- Clamp diode reverse voltage (VR): 50 V
- Clamp diode forward current (IF): 500 mA
- Power dissipation (PD): 1.47 W
- Operating temperature (Topr): -40 to 85 °C
- Storage temperature (Tstg): -55 to 150 °C
The ULN2803APG / AFWG Series are high-voltage, high-current darlington drivers comprised of eight NPN darlington pairs. They are suitable for applications such as relay, hammer, lamp, and display (LED) drivers.
For more details or bulk pricing, contact our sales team directly at sales02@thansiv.com or +91-8095406416.
Images are for illustration only; actual product may vary.
