Turbidity Sensor with Module
An efficient electronic monitoring module for Arduino, Raspberry Pi, and more.
- Working voltage: DC 5V
- Working current: 30mA [MAX]
- Response time: <500 msec
- Insulation Resistance: 100M [Min]
- Operating Temperature (C): -30 ~ +80
- Length (mm): 33
- Width (mm): 20
- Height (mm): 12
- Weight (gm): 55
Top Features:
- Compatible with Arduino, Raspberry Pi, AVR, PIC, etc.
- Measures water turbidity in rivers.
- Detects and verifies water quality.
- Digital and analog output.
The Turbidity Sensor with Module is designed to detect and verify water quality by measuring turbidity. It emits infrared light to detect suspended particles in water, making it ideal for various monitoring projects.
The sensor operates based on the principle of light transmission through water, with turbidity measurements influencing the dishwasher's washing decisions. By measuring turbidity, energy can be conserved on lightly soiled loads, resulting in energy savings.

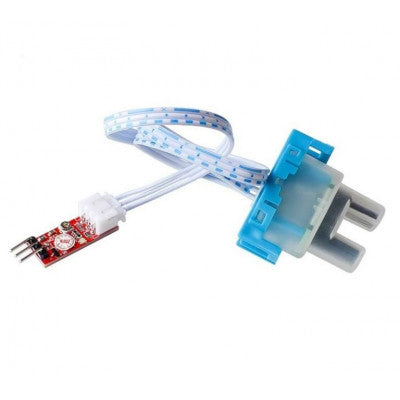

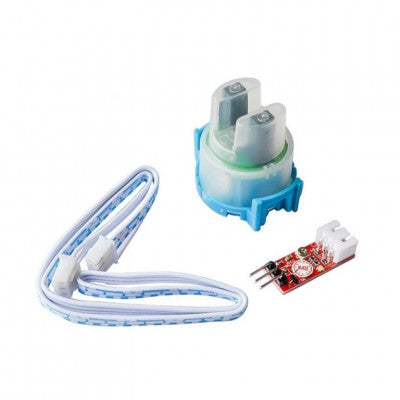

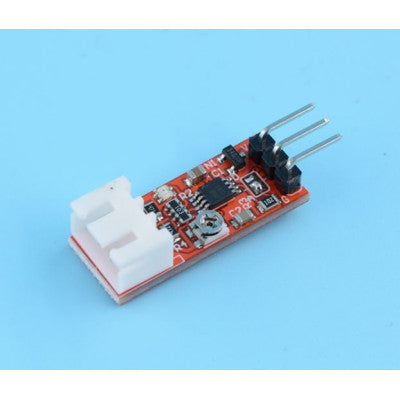

It comes with a trim pot for sensitivity adjustment and is suitable for monitoring water turbidity in rivers, lakes, research sites, and more. The package includes 1 Turbidity Sensor with Module and 1 Connecting Cable.
* Images are for illustration only; actual product may vary.
