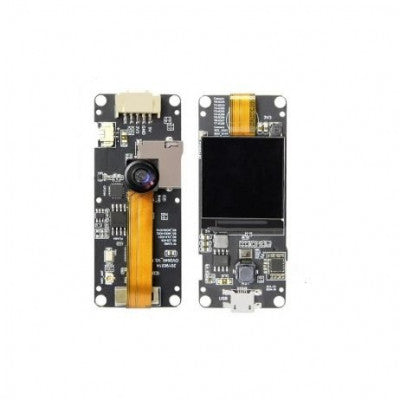

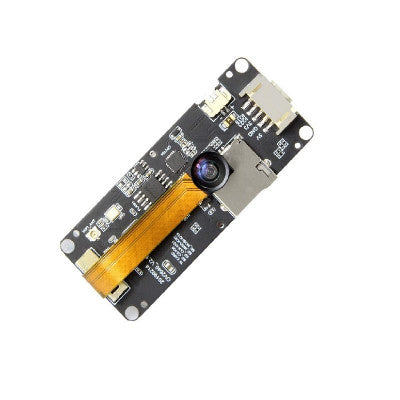

TTGO OV2640 1.3 Inch T-Camera Plus Fish-eye Lens Rear Camera Module
A versatile camera module for Arduino projects with strong driving ability and anti-interference.
- Chipset: ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
- Power Supply: USB 5V/1A
- Working Voltage: 2.3-3.6V
- Working Current: 160mA
- Charging Current: 1A
- FLASH Memory: QSPI flash/SRAM, up to 4 x 16 MB
- Display Type: IPS Panel ST7789/1.3 Inch
- USB to TTL: CP2104
- Camera: OV2640 2 Megapixel
- Frequency Range: 2.4GHz~2.5GHz
- Transmit Power: 22dBm
- Communication Distance: 300m
- Working Temperature Range (C): 40 to 85
- Length (mm): 70
- Width (mm): 30
Features:
- Can be extended to become a rear camera
- Image and data transfer capability
The TTGO OV2640 1.3 Inch T-Camera Plus Fish-eye Lens Rear Camera Module without MPU6050 is ideal for Arduino Robot, Household Power Systems, Raspberry Pi, and DIY Servo Shield Module applications.
Package Includes:
1 x TTGO OV2640 1.3 Inch T-Camera Plus Fish-eye Lens Rear Camera Module without MPU6050.
* Images are for illustration only; actual product may vary.
