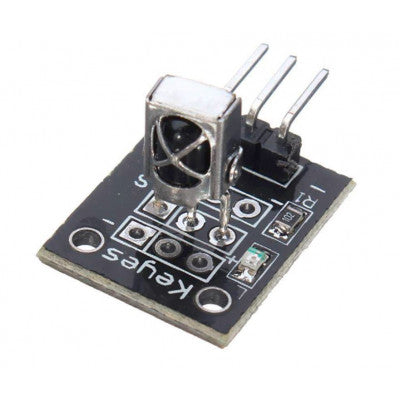

KY-022 Infrared Sensor Module
An ideal module for infrared light detection in the 700nm - 1mm range.
- Voltage: 3.3V to 5V
- Characteristics: 700nm – 1mm
- Chipset: TSOP1838 37.9kHz
- Daylight rejection: up to 500LUX
- Receiving distance: up to 18 m
- Package Includes: 1 x TSOP Sensor Module
Top Features:
- 700nm - 1mm detection range
- Low input voltage operation
- Data LED indicator
- High signal output on detection
The KY-022 module is ideally suited for infrared light detection, commonly used in project robots and remote control receivers. It operates at a low input voltage of 3.3V - 5V and outputs HIGH values when a signal is detected and LOW values when no signal is detected. The onboard data LED lights up when the sensor is triggered.
