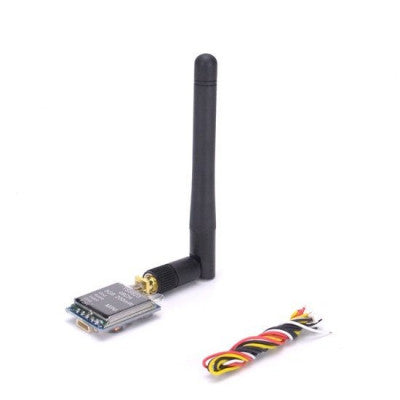

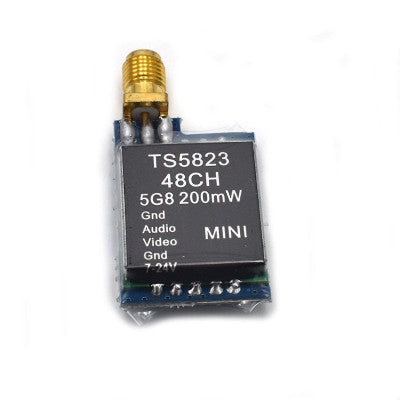

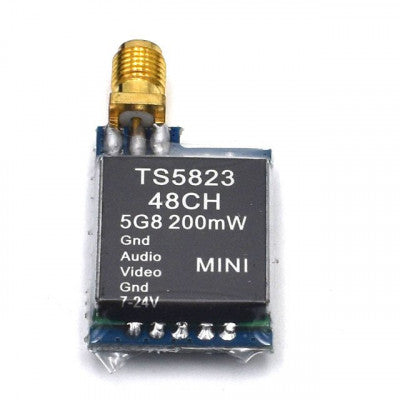

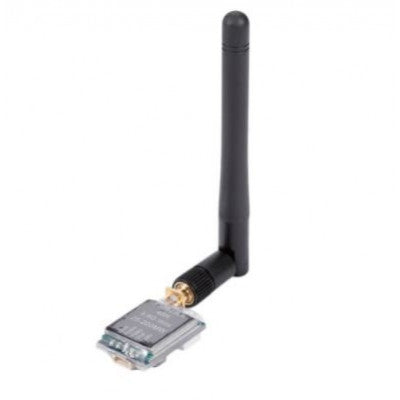

TS5823 200mw 48CH Mini Transmitter
Packs 200mW of ultra-clean 5.8GHz power in a micro-sized video/audio transmitter!

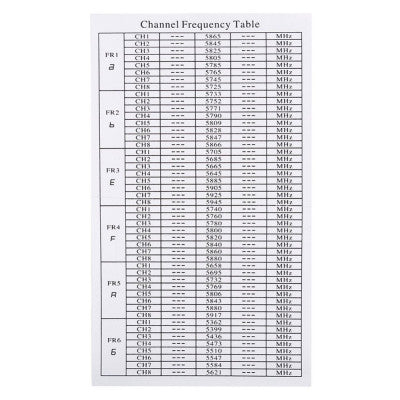

- No. of Channels: 48
- Rated Power (W): 200 mW
- Frequency(GHz): 5.6 to 5.9
- Operating Current (A): 0.19
- Voltage(V): 7 to 24
- Antenna Type: RP-SMA
Features:
- Micro-sized and lightweight
- Perfect for use with small models
- Transmitter frequency of 5645-5945MHz with 200mW power output
- Transmitting distance of 1500m in open area
The TS5823 is a must-have for those looking to save size and weight while still getting good performance. It is perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quantum Nova, DJI Phantom, QR X350, and more!
Package includes:

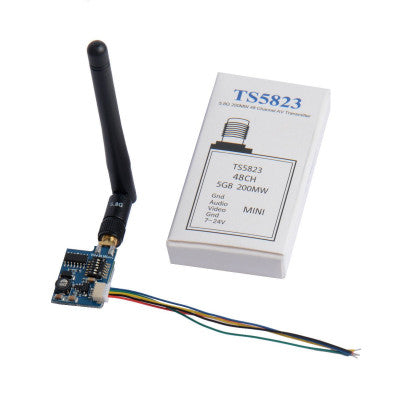

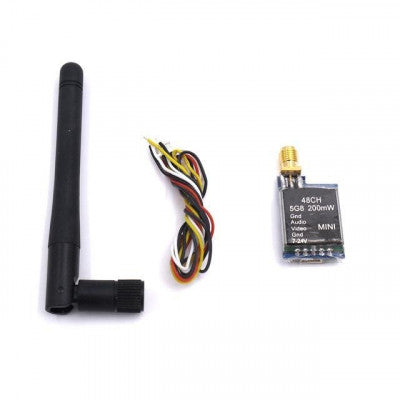

- 1 x TS5823 Mini 48CH 200MW Transmitter module
- 1 x Threaded Detachable Antenna
- 1 x AV Cable
Operating Temperature: -10 to 85°C
Module Size (LxWxH) mm: 40 x 20 x 8
Antenna Diameter(mm): 8
Antenna Length(mm): 106
Weight(gm): 15
* Images are for illustration only; actual product may vary.
