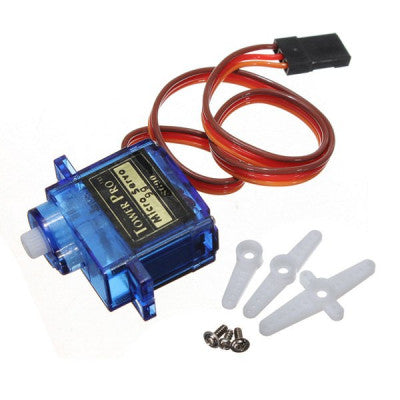

TowerPro SG90 Mini Servo Motor
A copy of the original TowerPro SG90 servo motor with optimized performance
- Model: SG90
- Weight(gm): 9
- Operating Voltage (VDC): 3.0 ~ 7.2
- Operating Speed @4.8V: 0.12sec/60
- Operating Speed @6.6V: 0.1sec/60
- Stall Torque @ 4.8V (Kg-Cm): 1.2
- Operating Temperature (C): -30 to 60
- Dead Band Width (s): 5
- Gear Type: Glass Fiber
- Rotational Degree: 360
- Servo Plug: JR
- Cable Length (cm): 25
- Length (mm): 23
- Width (mm): 12.6
- Height (mm): 30
- Shipment Weight: 0.014 kg
- Shipment Dimensions: 8 x 6 x 4 cm
Top Features:
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.
It equips Carbon Fiber Gears which makes the servo motor much lighter than same metal gear motor. For small load applications using the metal gear servo motor adds on unnecessary weight, so we suggest using this lightweight plastic gear servo motors.
It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists. They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.
Wire Description
RED Vcc(Positive)
Brown GND (Negative)
Orange PWM(Signal)
We are selling a wide range of Servo Motors with variable specs and quality material. Check them now in our Servo Motors and Accessories section.
Package Includes:
1 x TowerPro SG90 Servo Motor 360 rotation with Cable
Set of Horns: One Point, Two Point, Four Point
1 x Set of Screws
* Images are for illustration only; actual product may vary.
