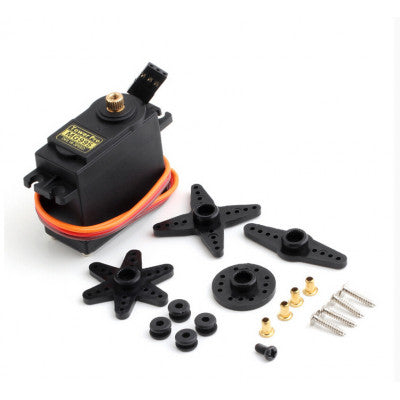

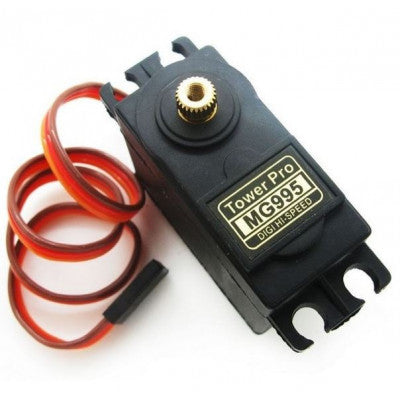

MG995 Metal Gear Servo Motor
A high-speed standard servo motor with top-notch performance for various RC models.
- Weight: 55g
- Dimension: 40.7 × 19.7 × 42.9 mm
- Operating Speed (4.8V no load): 20sec / 60 deg
- Operating Speed (6.0V no load): 16sec / 60 deg (no load)
- Stall Torque (4.8V): 10kg/cm
- Stall Torque (6.0V): 12kg/cm
- Operation Voltage: 4.8 - 7.2 Volts
- Gear Type: All Metal Gears
- Stable and shockproof double ball bearing design
- Dead band width: 5 µs
- Temperature range: 0 ºC – 55 ºC
- Control System: Analog
- Operating Angle: 120 degrees
- Required Pulse: 900us-2100us
Top Features:
- Thicker connection cable
- High-quality motor
- High resolution
- Accurate positioning
The MG995 Metal Gear Servo Motor is a digital servo motor capable of rotating approximately 180 degrees (60 in each direction). It provides 10kg/cm of torque at 4.8V and 12kgcm at 6V, making it ideal for use in airplanes, helicopters, RC cars, and various RC models.
Equipped with sophisticated internal circuitry, this servo motor receives and processes PWM signals faster and more efficiently. The all-metal gears ensure good torque, holding power, and rapid updates in response to external forces.
Housed in a sturdy plastic case, the MG995 servo motor is water and dust resistant, a valuable feature for RC planes, boats, and RC monster trucks. It features a 3-wire JR servo plug that is also compatible with Futaba connectors.
Wire Description:
RED – Positive
Brown – Negative
Orange – Signal
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com
+91-8095406416
Images are for illustration only; the actual product may vary.
