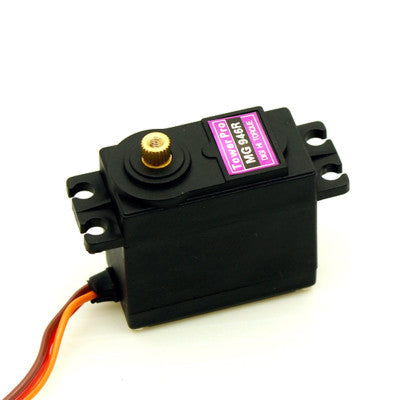

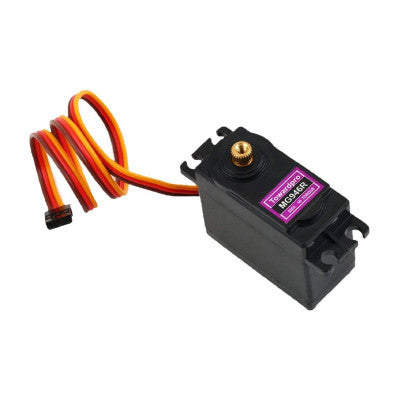

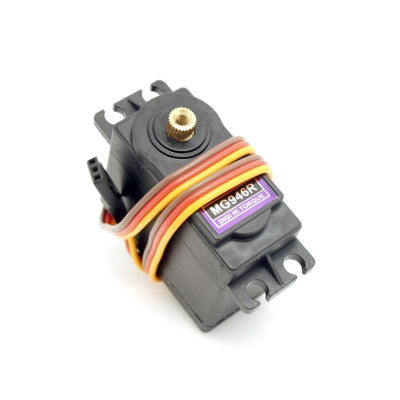

MG946R Metal Gear Digital High Torque Servo
Upgraded version of Tower Pro MG945 with improved accuracy and performance
- Angle of rotation: 180 degrees
- Operating Voltage (VDC): 4.8 ~ 6.6
- Temperature Range: 0-55
- Servo wire length: 32cm
- Dead band width: 1 uS
- Pulse Cycle: 1 mS
- Current draw (at idle): 10mA
- Operating current draw (at no load): 170mA
- Stall current draw: 1200mA
- Stall Torque @ 4.8V (Kg-Cm): 10.5
- Stall Torque @ 6V: 13kg/cm
- Operating Speed @ 4.8V: 0.20sec/60
- Operating Speed @ 6V: 0.17sec/60
- Length (mm): 40.7
- Width (mm): 19.7
- Height (mm): 42.9
- Weight (gm): 65
Top Features:
- Metal gear for durability
- Universal S type connector
- CE & RoHS approved
- Upgraded to aluminum 6061-T6 gear set and shaft
MG946R Metal Gear Digital High Torque Servo is designed for 1/8 buggy monster and various RC models. It features an upgraded PCB and IC control system for enhanced accuracy. The internal gearing and motor have also been improved to optimize dead bandwidth and centering.
Wire Description: Red Positive, Brown Negative, Orange Signal.

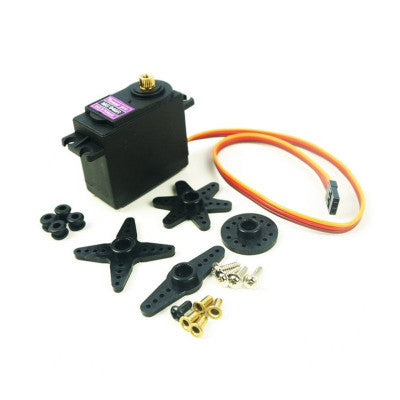

Package Includes: 1 x Tower Pro MG946R Digital High Torque Metal Gear Servo Motor and accessories parts (as shown in the image).
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
