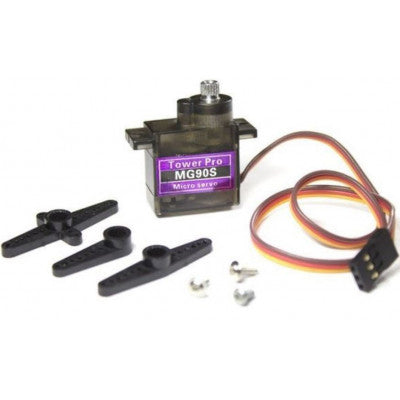

Tower Pro MG90S Mini Digital Servo
Mini digital servo with fast response and good torque for RC applications.
- Modulation: Analog
-
Torque:
- - 4.8V: 2.20 kg-cm
- - 6.0V: 2.50 kg-cm
-
Speed:
- 4.8V: 0.11 sec/60°
- 6.0V: 0.10 sec/60°
- Weight: 0.49 oz (14.0 g)
-
Dimensions:
- Length: 0.91 in (23.1 mm)
- Width: 0.48 in (12.2 mm)
- Height: 1.14 in (29.0 mm)
- Gear Type: Metal
- Rotation/Support: Dual Bearings
- Rotational Range: 180°
- Pulse Cycle: 20 ms
- Pulse Width: 400-2400 µs
-
Wire Description:
- RED – Positive
- Brown – Negative
- Orange – Signal
Top Features:
- 180° rotation
- Digital servo for fast PWM processing
- Good torque and holding power
- Water and dust-resistant plastic case
The Tower Pro MG90S Mini Digital Servo is a high-quality digital servo motor designed for RC hobbyists. It features optimized internal circuitry for faster PWM signal processing and provides excellent torque and holding power. The servo is encased in a sturdy plastic case that is water and dust resistant, making it ideal for use in RC planes, boats, and monster trucks.
With a metal gear type and dual bearings for support, this servo offers reliable performance. It has a rotational range of 180° and is compatible with Futaba connectors in addition to the 3-wire JR servo plug it comes with. The servo's compact dimensions and lightweight design make it suitable for various RC applications.
*Images are for illustration only; actual product may vary.*
