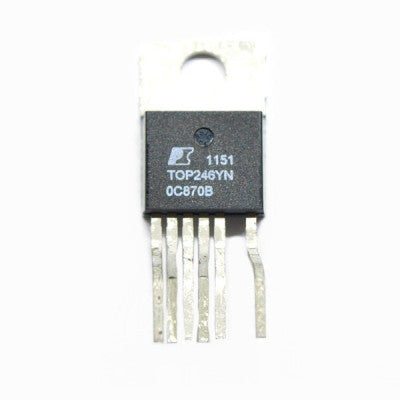

TOP246YN - TOPSwitch-GX Family
Extended power range, design flexibility, and energy efficiency for off-line power supplies
- Part Number: TOP246YN
- DRAIN Voltage: -0.3 to 700 V
- DRAIN Peak Current: 4.32A
- CONTROL Voltage: 0.3 to 9 V
- CONTROL Current: 100 mA
- Storage Temperature: -65 to 150 °C
- Operating Junction Temperature: -40 to 150 °C
- Lead Temperature: 260 °C
- Pack/Unit Details: 60W (Adapter1), 125W (Open Frame), 40W (Adapter1), 90W (Open Frame)
Top Features:
- Extended power range for higher applications
- No heatsink required up to 34W
- Fully integrated soft-start
- External programmable accurate current limit
- Frequency jittering for lower EMI
TOP246YN from the TOPSwitch-GX Family by "Power Integrations" boasts extended power range and design flexibility. It integrates high voltage power MOSFET, PWM control, fault protection, and other control circuitry onto a single CMOS chip, reducing system cost and improving energy efficiency. With various integrated functions, it offers improved design flexibility and performance.
The TOPSwitch-GX Family offers features like line sensing, accurate current limit setting, remote ON/OFF, synchronization, and frequency selection for enhanced user control. With critical parameters having tighter temperature tolerances, design simplification and system cost optimization are achieved.
EcoSmart features ensure energy efficiency with low consumption in remote off mode and frequency adjustments for high standby efficiency. The device regulates to zero load without the need for dummy loading and provides protection features like thermal shutdown for fault recovery.
