TNY280PN Integrated Circuit
Integrated circuit with 700V power MOSFET, oscillator, and thermal shutdown
- Spec name: Value
- Symbol Parameter: Min Type Max Units
- VBP BYPASS Pin Voltage: 5.6 5.85 6.15 V
- VBPH BYPASS Pin Voltage Hysteresis: 0.80 0.95 1.2 V
- VSHUNT BP/M Pin Shunt Voltage: 6 6.4 6.7 V
- ICH1 BP/M Pin Charge Current: -9.7 -6.8 -3.9 mA
Features:
- Simple ON/OFF control, no loop compensation needed
- Selectable current limit through BP/M capacitor value
- Higher current limit extends peak power
- Lower current limit improves efficiency
The TNY280PN incorporates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit (user selectable), and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability.
Allows optimum TNY280PN choice by swapping devices with no other circuit redesign. Tight I2f parameter tolerance reduces system cost. Maximizes MOSFET and magnetic power delivery. Minimizes max overload power, reducing the cost of transformer, primary clamp & secondary components. ON-time extension – extends low line regulation range/hold-up time to reduce input bulk capacitance. Self-biased: no bias winding or bias components. Frequency jittering reduces EMI filter costs. Pin-out simplifies heat sinking to the PCB. SOURCE pins are electrically quiet for low EMI.
Related Document: TNY280PN IC Data Sheet

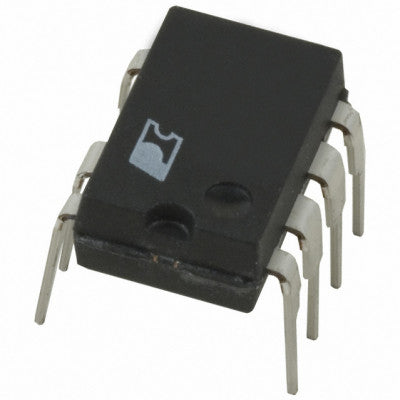

* Images are for illustration only; actual product may vary.
