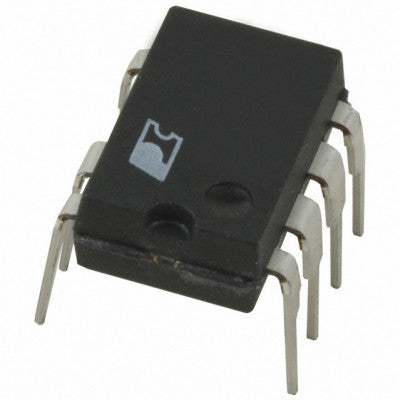

TNY276PN Integrated Circuit
Incorporates a 700V power MOSFET, oscillator, high voltage switched current source, current limit, and thermal shutdown.
- Spec name: Value
- Symbol Parameter: Min Type Max Units
- VBP BYPASS Pin Voltage: 5.6 5.85 6.15 V
- VBPH BYPASS Pin Voltage Hysteresis: 0.80 0.95 1.2 V
- VSHUNT BP/M Pin Shunt Voltage: 6 6.4 6.7 V
- ICH1 BP/M Pin Charge Current: -8.3 -5.4 -2.5 mA
Features:
- Simple ON/OFF control, no loop compensation needed
- Selectable current limit through BP/M capacitor value
- Higher current limit extends peak power
- Lower current limit improves efficiency
The TNY276PN IC family provides a design-flexible solution with a low system cost and extended power capability. It offers a simple ON/OFF control scheme and allows for a user-selectable current limit through BP/M capacitor value. The tight I2f parameter tolerance reduces system cost, while the maximization of MOSFET and magnetic power delivery minimizes max overload power.
Furthermore, the TNY276PN IC features self-biased operation with no bias winding or bias components required. The frequency jittering reduces EMI filter costs, and the pin-out simplifies heat sinking to the PCB. The source pins are electrically quiet for low EMI.
For more details or bulk pricing inquiries, please reach out to our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
