TNY274PN Power IC
Incorporating a 700V power MOSFET with flexible design and extended power capability.
- Spec name: TNY274PN
- Parameter: Power IC
- VBYP: 5.6 - 6.15V
- VBPH: 0.80 - 1.2V
- VSHUNT: 6 - 6.7V
- ICH1: -6 to -1.8mA
Top Features:
- Simple ON/OFF control, no loop compensation
- Selectable current limit for power optimization
- Maximizes power delivery and reduces overload
- Self-biased with no additional components
The TNY274PN IC family provides a design flexible solution with a low system cost, incorporating a 700V power MOSFET, oscillator, high voltage switched current source, user-selectable current limit, and thermal shutdown circuitry.
Using an ON/OFF control scheme, it optimizes power delivery and system costs, offering a range of benefits from enhanced efficiency to extended power capability. The design allows for easy integration without the need for loop compensation, while the selectable current limit feature caters to various application needs.
With tight I2f parameter tolerance, the TNY274PN reduces system costs and ensures consistent performance. The self-biased nature of the IC eliminates the need for a bias winding or additional bias components, simplifying the overall design.
Frequency jittering reduces EMI filter costs, while the pin-out design simplifies the heat sinking process, enabling efficient thermal management. The IC's SOURCE pins are electrically quiet, contributing to reduced EMI interference.
Whether you're looking to maximize power efficiency or optimize system costs, the TNY274PN offers a versatile solution with extended power capabilities.
For detailed technical specifications, refer to the TNY274PN IC Data Sheet provided by the manufacturer.

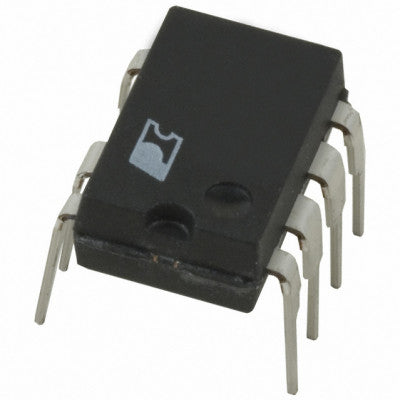

Images are for illustration only; actual product may vary.
