TNC Connectors
Designed for compatibility with industry-grade 50 ohm and 75-ohm cables, with gold and nickel plating for environmental protection.
- Brand: ElecBee
- Orientation: Straight
- Gender: Female
- Mounting Type: PCB Mount
- Termination Style: Solder Type
- Mounting Feature: None
- Function: Other
- Polarity: Standard
- Body Material: Zinc Alloy
- Body Plating: Nickel Plating
- Impedance: 50
- Shield Termination: Solder
Top Features:
- Socket, TNC, Female
- Suitable for Panel Mounting
- 50 ohm, 75 ohm
- Brass, Nickel Plating
Main Application of TNC Connectors: Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~11 GHz for 50 ohm
- VSWR: Straight type 1.3 max / R/A type 1.5 max
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance: 3.0m (Milliohms max.)
- Outer Contact Resistance: 2.0 m (Milliohms max.)
- Insulation Resistance: 5 10m (Milliohms min.)

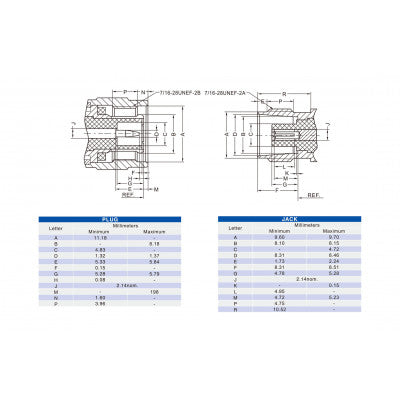

Mechanical Characteristics:
- Coupling: 7/16-28 thread
- Contact Retention: 6 lbs min.
- Mating Durability: 500 cycles
Environmental Characteristics:
- Environmental Characteristics: -65°C~+145°C
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101

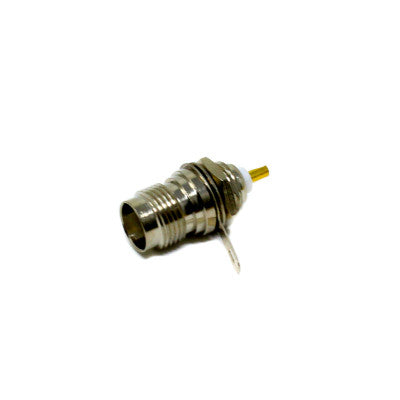

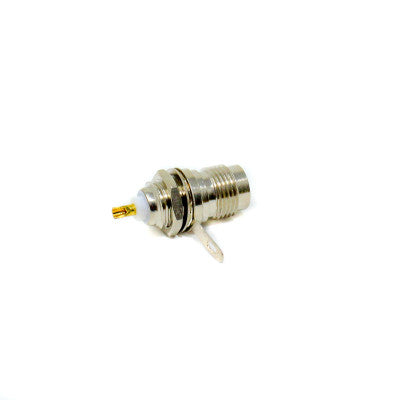

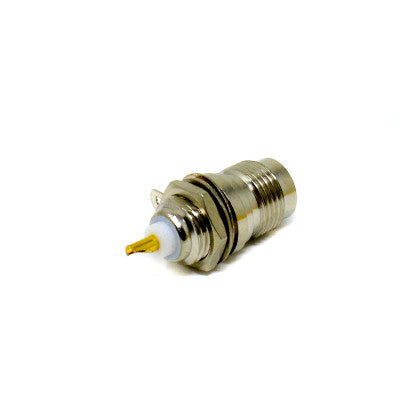

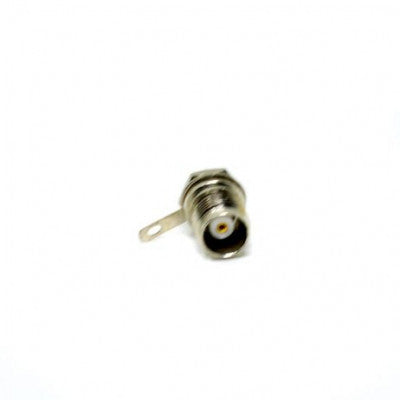

Package Includes: 1 x TNC Socket Female Soldering for Panel Mounting
* Images are for illustration only; actual product may vary.
