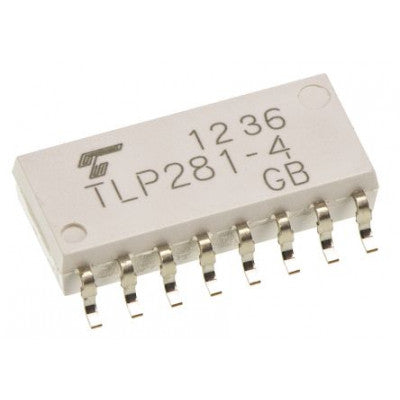

TLP281-4 Coupler
Small and thin coupler for surface mount assembly in various applications
- Collector-Emitter Voltage: 80 V (MIN)
- Current Transfer Ratio: 50% (MIN)
- Rank GB: 100% (MIN)
- Isolation Voltage: 2500 Vrms (MIN)
- UL Recognized: UL1577, File No. E67349
- BSI Approved: BS EN 60065: 2002, BS EN 60950-1: 2002 Certificate No. 8143, 8144
Features:
- Small and thin design
- Suitable for surface mount assembly
- Photo transistor and infrared emitting diode
- Collector-Emitter Voltage: 80 V (MIN)
- Symbol Parameter: Rating Units
- IF Forward Current: 50 mA
- IF / °C Forward current derating: 0.5 (Ta=25°C) mA / °C
- IFP Pulse forward current: 1 A
- VR Reverse voltage: 5 V
- Tj Junction temperature: 125 °C
- VCEO Collector-emitter voltage: 80 V
- VECO Emitter-collector voltage: 7 V
- IC Collector current: 50 mA
- PC Collector power dissipation: 100 mW
- PC/°C Collector power dissipation derating (Ta=25°C): 1.0 mW / °C
Related Document: TLP281-4 SMD Data Sheet
