TLP131 Small Outline Coupler
A small outline coupler suitable for surface mount assembly.
- Collector-emitter voltage: 80V (min.)
- Current transfer ratio: 50% (min.) Rank GB: 100% (min.)
- Isolation voltage: 3750Vrms (min.)
- UL recognized: UL1577, file No. E67349
Specifications:
- Symbol Parameter: Rating Units
- IF Forward Current: 50 mA
- ?IF / °C Forward current derating: -0.7 mA / °C
- IFP Pulse forward current: 1 A
- VR Reverse voltage: 5 V
- Tj Junction temperature: 125 °C
- VCEO Collector-emitter voltage: 80 V
- VECO Emitter-collector voltage: 7 V
- IC Collector current: 50 mA
- PC Collector power dissipation: 150 mW
- ?PC/°C Collector power dissipation derating (Ta ? 25°C): -1.5 mW / °C
- Tj Junction temperature: 125 °C
- Tstg Storage temperature range: -55~125 °C
- Topr Operating temperature range: -55~100 °C
- Tsol Lead soldering temperature: 260 °C
- PT Total package power dissipation: 200 mW
- ?PT / °C Total package power dissipation derating (Ta ? 25°C): -2 mW / °C
- BVs Isolation voltage: 3750 Vrms
TLP131 base terminal is for the improvement of speed, the reduction of dark current, and enables operation.
Related Document: TLP131 SMD Data Sheet

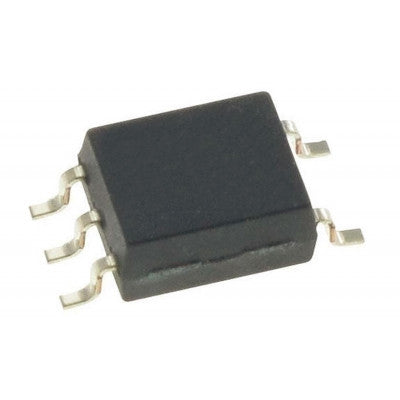

Images are for illustration only; actual product may vary.
