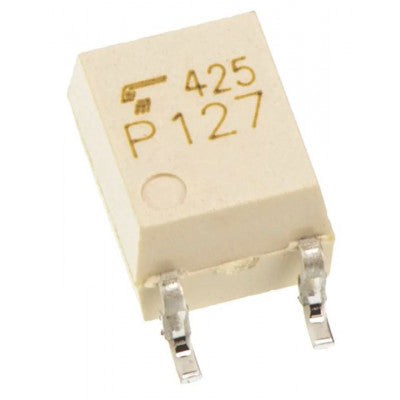

TLP127 Small Outline Coupler
A small outline coupler suitable for surface mount assembly.
- Collector-emitter voltage: 300 V (min.)
- Current transfer ratio: 1000% (min.)
- Isolation voltage: 2500Vrms (min.)
- UL recognized: UL1577, file no. E67349
Top Features:
- 300V VCEO
- 1000% min. current transfer ratio
- 2500Vrms min. isolation voltage
- UL1577 recognized
Specification:
- Symbol Parameter: Rating Units
- IF Forward Current (DC): 50 mA
- IF / °C Forward current derating: 0.7 (Ta ? 53°C) mA / °C
- IFP Pulse forward current: 1 (100?s pulse, 100pps) A
- VR Reverse voltage: 5 V
- Tj Junction temperature: 125 °C
- VECO Emitter-collector voltage: 0.3 V
- IC Collector current: 150 mA
- PC Collector power dissipation: 150 mW
- PC / °C Collector power dissipation derating (Ta ? 25°C): -1.5 mW / °C
- Tstg Storage temperature range: -55~125 °C
- Topr Operating temperature range: -55~100 °C
- Tsol Lead soldering temperature: 260 (10s) °C
- PT Total package power dissipation: 200 mW
- PT / °C Total package power dissipation derating (Ta ? 25°C): -2 mW / °C
- BVs Isolation voltage: 2500 (AC, 1min., R.H.? 60%) Vrms
Related Document: TLP127 SMD Data Sheet
