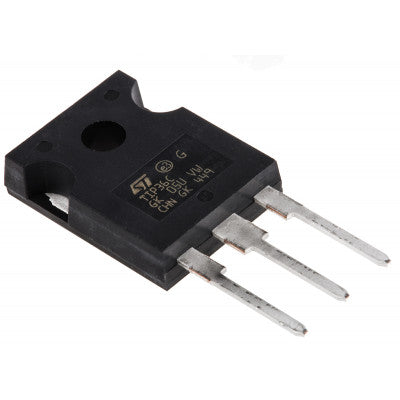

TIP36C
A three-layer PNP device with low saturation voltage and high safe operating area.
- Transistor Polarity: PNP
- Collector-Emitter Voltage (VCEO): 100V
- Collector-Base Voltage (VCBO): 100V
- Continuous Collector Current (IC): 25A
- Continuous Base Current (IB): 5A
- Emitter-Base Voltage (VEBO): 5V
- Power Dissipation (Pd): 125W
- Operating Temperature Range: -65 to 150°C
- DC Current Gain (hFE): 10-50
Features:
- Low saturation voltage
- Simple drive requirements
- High safe operating area
- For low distortion complementary designs
TIP36C is a three-layer PNP device where the collector current IC varies based on the base current IB. The change in the base current results in an amplified change in the collector current for a given collector-emitter voltage VCE.
Easy to carry and handle, the TIP36C is suitable for various applications. Reach out to our sales team for more details or bulk pricing: sales02@thansiv.com, +91-8095406416.
Images are for illustration only; actual product may vary.
