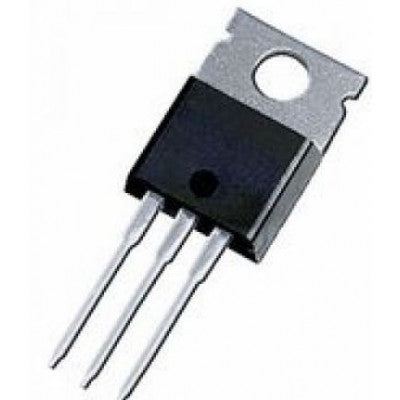

TIP32
A three-layer PNP device with low saturation voltage and high safe operating area.
- Transistor Polarity: PNP
- Collector-Emitter Voltage (VCEO): 40VDC
- Collector-Base Voltage (VCBO): 40VDC
- Continuous Collector Current (Ic): 3ADC
- Continuous Base Current (Ib): 1ADC
- Emitter Base Voltage (VEBO): 5VDC
- Power Dissipation (Pd): 40W
- Operating Temperature Range: -65 - 150°C
- DC Current Gain (hFE): 10-50
- Pack/Unit: Single
Features:
- Low saturation voltage
- Simple drive requirements
- High safe operating area
- For low distortion complementary designs
TIP32 is a three-layer PNP device where the collector current IC is dependent on the base current IB. A variation in the base current results in an amplified change in the collector current for a given collector-emitter voltage VCE. It is easy to carry and handle.
Related Documents: TIP32C Transistor Datasheet
