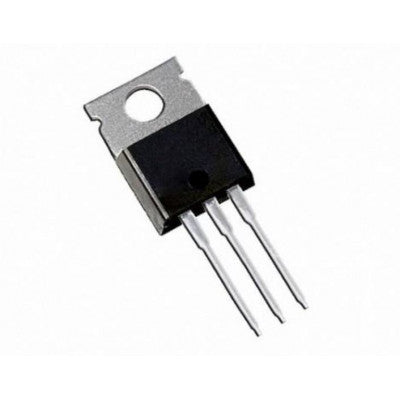

TIP127 PNP Device
High-performing PNP device for diverse applications
TIP127 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
- Transistor Polarity: PNP
- Collector-Emitter Voltage (VCEO): 100V
- Collector-Base Voltage (VCBO): 100V
- Continuous Collector Current (Ic): 5A
- Continuous Base Current (Ib): 0.12A
- Emitter Base Voltage (VEBO): 5V
- Power Dissipation (Pd): 65W
- Operating Temperature Range: -65 - 150°C
- DC Current Gain (hFE): 1000
- Low saturation voltage
- Simple drive requirements
- High safe operating area
- For low distortion complementary designs
- Easy to carry and handle
Related Documents:- TIP127 Transistor Datasheet
