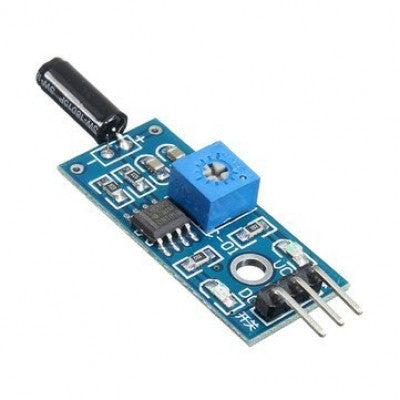

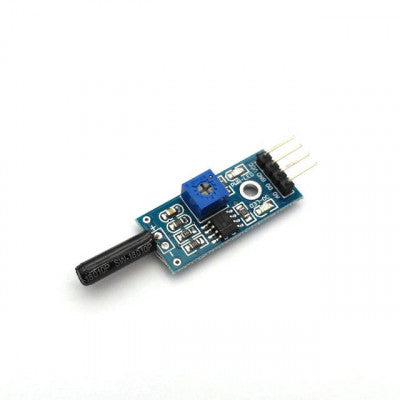

Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino
Easy-to-use tilt sensor module with ball rolling type sensor
- Operating Voltage (VDC): 3.3 ~ 5
- Length (mm): 30
- Width (mm): 14
- Height (mm): 6
- Weight (gm): 3
Features:
- Ball Rolling type of tilt sensor
- Easy to use
- Affixed bolt hole for easy installation
- Wide voltage LM393 comparator
The Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino comes with the basic components for operation. Simply supply power and it is ready to be used. Attach it to an object to detect tilt. The digital output allows you to easily determine if the object is tilted or not by reading the output. It uses SW-460D or SW-520D tilt sensor, which is the ball rolling type, NOT Mercury type.
Featuring an M3 mounting hole for easy attachment to an object, this module provides a tilt switch with high sensitivity, commonly used for tilt detection. It also includes power LED and status LED for visual indicators. The module outputs logic LOW when untilted, and logic HIGH when tilted over the threshold angle, which ranges from 45 degrees to 130 degrees, depending on the angular velocity. It can also function as a vibration sensor.
Compatible with any microcontroller with digital input such as 8051, PIC, SK40C, SK28A, SKds40A. Pin Connection: VCC = 5V, GND = 0V, DO = digital output from module. Note: If the DO is not working, adjust the on-board potentiometer to center.
Package Includes: 1 x Tilt Sensor Vibration Alarm Vibration Switch Module.
* Images are for illustration only; actual product may vary.
